減速機SA87電機功率：SA87Y0.12KW,SA87Y0.18KW,SA87Y0.25KW,SA87Y0.37KW,SA87Y0.55KW,SA87Y0.75KW,SA87Y1.1KW,SA87Y1.5KW,SA87Y2.2KW,SA87Y3KW,SA87Y4KW,SA87Y5.5KW,SA87Y7.5KW,SA87Y11KW,SA87Y15KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

渦輪減速器SA87減速比：288比減速器,258.18比減速器,222.4比減速器,202.96比減速器,180比減速器,151.3比減速器,139.05比減速器,123.48比減速器,110.4比減速器,99.26比減速器,91.2比減速器,86.15比減速器,81.76比減速器,77.14比減速器,70.43比減速器,64.27比減速器,64比減速器,57比減速器,47.91比減速器,44.03比減速器,39.1比減速器,34.96比減速器,31.43比減速器,27.28比減速器,25.5比減速器,24.43比減速器,21.43比減速器,20.27比減速器,19.7比減速器,17.49比減速器,15.64比減速器,14.06比減速器,12.21比減速器,10.93比減速器,9.07比減速器,7.88比減速器

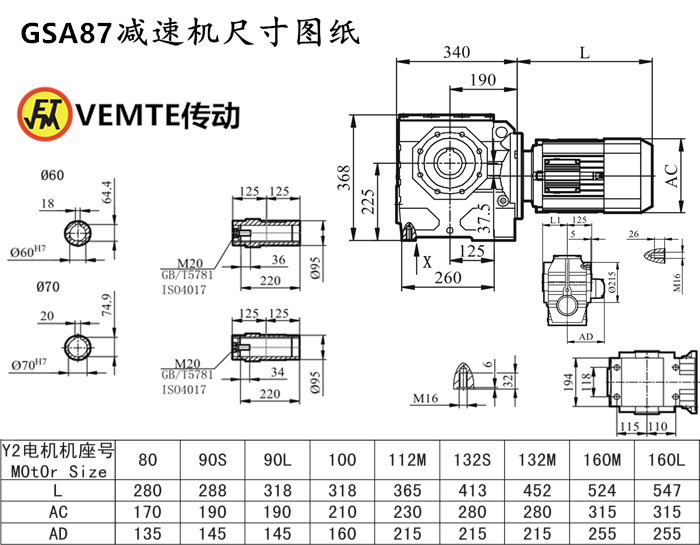

減速機SA87安裝尺寸：輸出孔+鍵Φ74.4（可定做），高368*寬250*長340

減速機SA87輸出轉數：減速機4.9rpm,減速機5.4rpm,減速機6.3rpm,減速機6.9rpm,減速機7.8rpm,減速機9.3rpm,減速機10rpm,減速機11rpm,減速機14rpm,減速機15rpm,減速機16rpm,減速機17rpm,減速機18rpm,減速機20rpm,減速機22rpm,減速機25rpm,減速機29rpm,減速機32rpm,減速機36rpm,減速機40rpm,減速機45rpm,減速機51rpm,減速機55rpm,減速機57rpm,減速機65rpm,減速機69rpm,減速機71rpm,減速機80rpm,減速機90rpm,減速機100rpm,減速機115rpm,減速機128rpm,減速機154rpm,減速機178rpm。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

渦輪減速箱SA87輸出扭矩：2280Nm減速箱,2260Nm減速箱,2210Nm減速箱,2150Nm減速箱,2100Nm減速箱,2060Nm減速箱,2000Nm減速箱,1960Nm減速箱,1510Nm減速箱,1880Nm減速箱,1600Nm減速箱,1820Nm減速箱,1700Nm減速箱,1240Nm減速箱,1140Nm減速箱,1010N.m減速箱。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

減速機SA87電機型號：SA87DV71S4,SA87DV80S4,SA87DV90S4,SA87DV100S4,SA87DV112S4,SA87DV132S4,SA87DV160S4,SA87DT71S4,SA87DT80S4,SA87DT90S4,SA87DT100S4,SA87DT112S4,SA87DT132S4,SA87DT160S4,SA87DRE71S4,SA87DRE80S4,SA87DRE90S4,SA87DRE100S4,SA87DRE112S4,SA87DRE132S4,SA87DRE160S4,SA87DRS71S4,SA87DRS80S4,SA87DRS90S4,SA87DRS100S4,SA87DRS112S4,SA87DRS132S4,SA87DRS160S4,SA87Y71S4,SA87Y80S4,SA87Y90S4,SA87Y100S4,SA87Y112S4,SA87Y132S4,SA87Y160S4,SA87DV71M4,SA87DV80M4,SA87DV90M4,SA87DV100M4,SA87DV112M4,SA87DV132M4,SA87DV160M4,SA87DT71M4,SA87DT80M4,SA87DT90M4,SA87DT100M4,SA87DT112M4,SA87DT132M4,SA87DT160M4,SA87DRE71M4,SA87DRE80M4,SA87DRE90M4,SA87DRE100M4,SA87DRE112M4,SA87DRE132M4,SA87DRE160M4,SA87DRS71M4,SA87DRS80M4,SA87DRS90M4,SA87DRS100M4,SA87DRS112M4,SA87DRS132M4,SA87DRS160M4,SA87Y71M4,SA87Y80M4,SA87Y90M4,SA87Y100M4,SA87Y112M4,SA87Y132M4,SA87Y160M4,SA87DV71L4,SA87DV80L4,SA87DV90L4,SA87DV100L4,SA87DV112L4,SA87DV132L4,SA87DV160L4,SA87DT71L4,SA87DT80L4,SA87DT90L4,SA87DT100L4,SA87DT112L4,SA87DT132L4,SA87DT160L4,SA87DRE71L4,SA87DRE80L4,SA87DRE90L4,SA87DRE100L4,SA87DRE112L4,SA87DRE132L4,SA87DRE160L4,SA87DRS71L4,SA87DRS80L4,SA87DRS90L4,SA87DRS100L4,SA87DRS112L4,SA87DRS132L4,SA87DRS160L4,SA87Y71L4,SA87Y80L4,SA87Y90L4,SA87Y100L4,SA87Y112L4,SA87Y132L4,SA87Y160L4

GSA系列減速器SA87配各種電機實物圖：

減速機SA87生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://ammunjo.com/product/list-saxiliejiansuji-cn.html

推薦類似型號：SAF87減速機
