SA37減速機詳細信息
SA37減速機
SA37減速機電機功率：自鎖減速箱
SA37Y0.12KW,SA37Y0.18KW,SA37Y0.25KW,SA37Y0.37KW,SA37Y0.55KW,SA37Y0.75KW,SA37Y1.1KW（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。
SA37蝸輪蝸桿減速機減速比：
1:157.43減速器,1:144.40減速器,1:122.94減速器,1:106.00減速器,1:98.80減速器,1:86.36減速器,1:80.96減速器,1:71.44減速器,1:63.33減速器,1:55.93減速器,1:53.83減速器,1:51.30減速器,1:43.68減速器,1:37.66減速器,1:35.10減速器,1:30.68減速器,1:28.76減速器,1:25.38減速器,1:22.50減速器,1:19.89減速器,1:19.13減速器,1:18.24減速器,1:15.53減速器,1:13.39減速器,1:12.48減速器,1:10.91減速器,1:10.23減速器,1:9.02減速器,1:8.00減速器,1:6.80減速器,1:6.33減速器,1:5.38減速器,1:4.86減速器,1:3.97減速器
SA37減速機安裝尺寸：輸出孔+鍵Φ22.8（可定做），高131*寬120*長143
SA37減速機輸出轉數：8.9rpm,9.7rpm,11rpm,13rpm,14rpm,16rpm,17rpm,20rpm,22rpm,25rpm,26rpm,27rpm,32rpm,37rpm,40rpm,46rpm,49rpm,55rpm,62rpm,70rpm,73rpm,77rpm,90rpm,105rpm,112rpm,128rpm,137rpm,155rpm,175rpm,206rpm,221rpm,260rpm,288rpm,353rpm。（以上rpm/min數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）
SA37自鎖減速器輸出扭矩：
92Nm減速箱,91Nm減速箱,88Nm減速箱,87Nm減速箱,86Nm減速箱,85Nm減速箱,84Nm減速箱,82Nm減速箱,81Nm減速箱,80Nm減速箱,79Nm減速箱,78Nm減速箱,76Nm減速箱,75Nm減速箱,74Nm減速箱,73Nm減速箱,52Nm減速箱,71Nm減速箱,50Nm減速箱,49Nm減速箱,48Nm減速箱,47Nm減速箱,46Nm減速箱,45Nm減速箱,43Nm減速箱,35Nm減速箱,34Nm減速箱,33Nm減速箱,32Nm減速箱。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）
SA37減速機電機型號：SA37DRE63M4,SA37DRE71M4,SA37DRE80M4,SA37DRE90M4,SA37DRS63M4,SA37DRS71M4,SA37DRS80M4,SA37DRS90M4,SA37DT63M4,SA37DT71M4,SA37DT80M4,SA37DT90M4,SA37DV63M4,SA37DV71M4,SA37DV80M4,SA37DV90M4,SA37Y63M4,SA37Y71M4,SA37Y80M4,SA37Y90M4,SA37DRE63S4,SA37DRE71S4,SA37DRE80S4,SA37DRE90S4,SA37DRS63S4,SA37DRS71S4,SA37DRS80S4,SA37DRS90S4,SA37DT63S4,SA37DT71S4,SA37DT80S4,SA37DT90S4,SA37DV63S4,SA37DV71S4,SA37DV80S4,SA37DV90S4,SA37Y63S4,SA37Y71S4,SA37Y80S4,SA37Y90S4,SA37DRE63L4,SA37DRE71L4,SA37DRE80L4,SA37DRE90L4,SA37DRS63L4,SA37DRS71L4,SA37DRS80L4,SA37DRS90L4,SA37DT63L4,SA37DT71L4,SA37DT80L4,SA37DT90L4,SA37DV63L4,SA37DV71L4,SA37DV80L4,SA37DV90L4,SA37Y63L4,SA37Y71L4,SA37Y80L4,SA37Y90L4
SA系列減速器SA37減速機配各種電機實物圖：
SA37減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://ammunjo.com/product/list-saxiliejiansuji-cn.html
推薦類似型號：減速機SAF37
關鍵詞:伺服電機連接減速機_私服電機帶減速機_SA系列減速機_私服電機減速機
SA系列蝸輪蝸桿減速機型號：SA37減速機,SA47減速機,SA57減速機,SA67減速機,SA77減速機,SA87減速機,SA97
SA系列自鎖減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13826972124，留言告知工程師參數要求

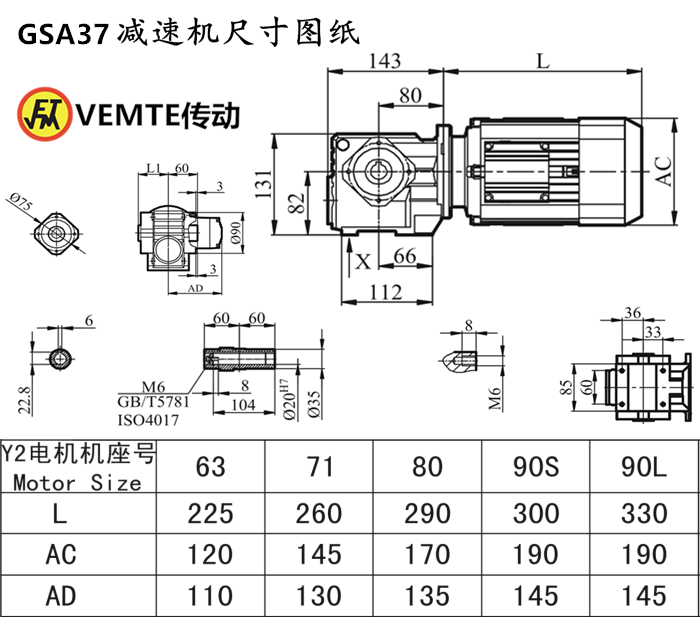

標簽: 減速電機SA37 SA37斜齒輪蝸輪蝸桿減速機 SA37減速器 SA37減速機尺寸圖紙 GSA37減速機尺寸圖紙
