SA97減速機電機功率：SA97Y0.12KW,SA97Y0.18KW,SA97Y0.25KW,SA97Y0.37KW,SA97Y0.55KW,SA97Y0.75KW,SA97Y1.1KW,SA97Y1.5KW,SA97Y2.2KW,SA97Y3KW,SA97Y4KW,SA97Y5.5KW,SA97Y7.5KW,SA97Y11KW,SA97Y15KW,SA97Y18.5KW,SA97Y22KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

SA97減速機減速比：1:286.4減速器,1:262.22減速器,1:231.67減速器,1:196.52減速器,1:180.95減速器,1:161.74減速器,1:145.6減速器,1:131.85減速器,1:116.92減速器,1:105.71減速器,1:89.6減速器,1:80.85減速器,1:78.26減速器,1:71.43減速器,1:65.45減速器,1:60.59減速器,1:55.79減速器,1:49.87減速器,1:44.89減速器,1:40.65減速器,1:36.05減速器,1:32.6減速器,1:27.63減速器,1:26.39減速器,1:24.13減速器,1:23.59減速器,1:21.23減速器,1:19.23減速器,1:17.05減速器,1:15.42減速器,1:13.07減速器,1:11.41減速器,1:9.55減速器,1:8.26減速器

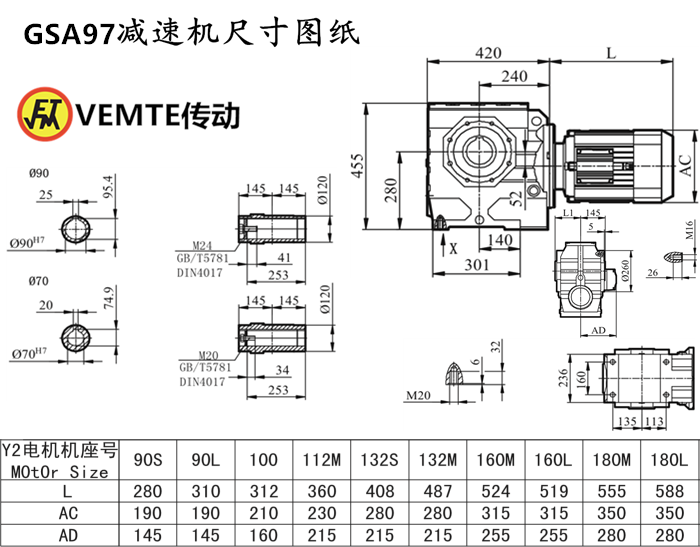

SA系列減速機SA97減速機安裝尺寸：輸出孔+鍵Φ95.9（可定做），高455*寬290*長420

SA97減速機輸出轉數：4.9rpm減速機,5.3rpm減速機,6rpm減速機,7.1rpm減速機,7.7rpm減速機,8.7rpm減速機,9.6rpm減速機,11rpm減速機,12rpm減速機,13rpm減速機,16rpm減速機,17rpm減速機,18rpm減速機,20rpm減速機,21rpm減速機,23rpm減速機,25rpm減速機,28rpm減速機,31rpm減速機,34rpm減速機,39rpm減速機,43rpm減速機,51rpm減速機,53rpm減速機,58rpm減速機,59rpm減速機,66rpm減速機,73rpm減速機,82rpm減速機,91rpm減速機,107rpm減速機,123rpm減速機,147rpm減速機,169rpm減速機。（以上rpm/min數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

SA97渦輪減速箱輸出扭矩：減速箱1770Nm,減速箱2040Nm,減速箱2210Nm,減速箱2330Nm,減速箱2470Nm,減速箱2570Nm,減速箱2600Nm,減速箱2870Nm,減速箱2900Nm,減速箱3010Nm,減速箱3080Nm,減速箱3200Nm,減速箱3230Nm,減速箱3240Nm,減速箱3300Nm,減速箱3300Nm,減速箱3440Nm,減速箱3510Nm,減速箱3650Nm,減速箱3730Nm,減速箱3840Nm,減速箱3920Nm,減速箱4000Nm,。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

SA97減速機電機型號：SA97DV80S4,SA97DV90S4,SA97DV100S4,SA97DV112S4,SA97DV132S4,SA97DV160S4,SA97DV180S4,SA97DV200S4,SA97DT80S4,SA97DT90S4,SA97DT100S4,SA97DT112S4,SA97DT132S4,SA97DT160S4,SA97DT180S4,SA97DT200S4,SA97DRE80S4,SA97DRE90S4,SA97DRE100S4,SA97DRE112S4,SA97DRE132S4,SA97DRE160S4,SA97DRE180S4,SA97DRE200S4,SA97DRS80S4,SA97DRS90S4,SA97DRS100S4,SA97DRS112S4,SA97DRS132S4,SA97DRS160S4,SA97DRS180S4,SA97DRS200S4,SA97Y80S4,SA97Y90S4,SA97Y100S4,SA97Y112S4,SA97Y132S4,SA97Y160S4,SA97Y180S4,SA97Y200S4,SA97DV80M4,SA97DV90M4,SA97DV100M4,SA97DV112M4,SA97DV132M4,SA97DV160M4,SA97DV180M4,SA97DV200M4,SA97DT80M4,SA97DT90M4,SA97DT100M4,SA97DT112M4,SA97DT132M4,SA97DT160M4,SA97DT180M4,SA97DT200M4,SA97DRE80M4,SA97DRE90M4,SA97DRE100M4,SA97DRE112M4,SA97DRE132M4,SA97DRE160M4,SA97DRE180M4,SA97DRE200M4,SA97DRS80M4,SA97DRS90M4,SA97DRS100M4,SA97DRS112M4,SA97DRS132M4,SA97DRS160M4,SA97DRS180M4,SA97DRS200M4,SA97Y80M4,SA97Y90M4,SA97Y100M4,SA97Y112M4,SA97Y132M4,SA97Y160M4,SA97Y180M4,SA97Y200M4,SA97DV80L4,SA97DV90L4,SA97DV100L4,SA97DV112L4,SA97DV132L4,SA97DV160L4,SA97DV180L4,SA97DV200L4,SA97DT80L4,SA97DT90L4,SA97DT100L4,SA97DT112L4,SA97DT132L4,SA97DT160L4,SA97DT180L4,SA97DT200L4,SA97DRE80L4,SA97DRE90L4,SA97DRE100L4,SA97DRE112L4,SA97DRE132L4,SA97DRE160L4,SA97DRE180L4,SA97DRE200L4,SA97DRS80L4,SA97DRS90L4,SA97DRS100L4,SA97DRS112L4,SA97DRS132L4,SA97DRS160L4,SA97DRS180L4,SA97DRS200L4,SA97Y80L4,SA97Y90L4,SA97Y100L4,SA97Y112L4,SA97Y132L4,SA97Y160L4,SA97Y180L4,SA97Y200L4

SA97減速機配各種電機實物圖：

蝸輪蝸桿減速機廠SA97減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://ammunjo.com/product/list-saxiliejiansuji-cn.html

推薦類似型號：減速機SAF97
