SA47減速機電機功率：SA47Y0.12KW,SA47Y0.18KW,SA47Y0.25KW,SA47Y0.37KW,SA47Y0.55KW,SA47Y0.75KW,SA47Y1.1KW,SA47Y1.5KW（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

SA47減速機減速比：1:201減速器,1:184.8減速器,1:158.12減速器,1:137.05減速器,1:128.10減速器,1:110.73減速器,1:94.08減速器,1:84.00減速器,1:71.75減速器,1:69.39減速器,1:67.20減速器,1:63.80減速器,1:56.61減速器,1:54.59減速器,1:47.32減速器,1:44.22減速器,1:38.23減速器,1:32.48減速器,1:29.00減速器,1:24.77減速器,1:23.20減速器,1:20.33減速器,1:19.54減速器,1:17.62減速器,1:16.47減速器,1:14.24減速器,1:12.10減速器,1:10.80減速器,1:9.23減速器,1:8.64減速器,1:7.28減速器,1:6.83減速器

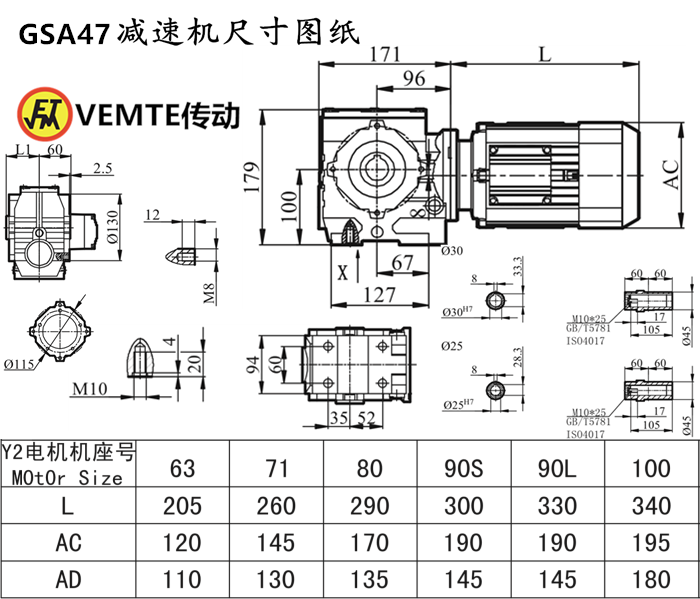

SA47減速機安裝尺寸：輸出孔+鍵Φ33.3（可定做），高179*寬120*長171

SA47渦輪減速電機輸出轉數：7rpm,7.6rpm,8.9rpm,10rpm,11rpm,13rpm,15rpm,17rpm,20rpm,21rpm,22rpm,25rpm,26rpm,30rpm,32rpm,37rpm,43rpm,48rpm,57rpm,60rpm,69rpm,72rpm,79rpm,85rpm,98rpm,116rpm,130rpm,152rpm,162rpm,192rpm,205rpm。（以上rpm/min數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

SA47減速機輸出扭矩：170Nm減速箱,168Nm減速箱,167Nm減速箱,155Nm減速箱,165Nm減速箱,152Nm減速箱,110Nm減速箱,144Nm減速箱,109Nm減速箱,103Nm減速箱,78Nm減速箱。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

SA47減速機電機型號：SA47DV63M4,SA47DV71M4,SA47DV80M4,SA47DV90M4,SA47DT63M4,SA47DT71M4,SA47DT80M4,SA47DT90M4,SA47DRE63M4,SA47DRE71M4,SA47DRE80M4,SA47DRE90M4,SA47DRS63M4,SA47DRS71M4,SA47DRS80M4,SA47DRS90M4,SA47Y63M4,SA47Y71M4,SA47Y80M4,SA47Y90M4,SA47DV63S4,SA47DV71S4,SA47DV80S4,SA47DV90S4,SA47DT63S4,SA47DT71S4,SA47DT80S4,SA47DT90S4,SA47DRE63S4,SA47DRE71S4,SA47DRE80S4,SA47DRE90S4,SA47DRS63S4,SA47DRS71S4,SA47DRS80S4,SA47DRS90S4,SA47Y63S4,SA47Y71S4,SA47Y80S4,SA47Y90S4,SA47DV63L4,SA47DV71L4,SA47DV80L4,SA47DV90L4,SA47DT63L4,SA47DT71L4,SA47DT80L4,SA47DT90L4,SA47DRE63L4,SA47DRE71L4,SA47DRE80L4,SA47DRE90L4,SA47DRS63L4,SA47DRS71L4,SA47DRS80L4,SA47DRS90L4,SA47Y63L4,SA47Y71L4,SA47Y80L4,SA47Y90L4蝸輪蝸桿減速機

SA47減速機配各種電機實物圖：

SA系列減速器SA47減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://ammunjo.com/product/list-saxiliejiansuji-cn.html

推薦類似型號：減速機SAF47
