減速機KA127詳細信息
減速機KA127
減速機KA127電機功率：KA系列減速機
KA127Y0.18KW,KA127Y0.25KW,KA127Y0.37KW,KA127Y0.55KW,KA127Y0.75KW,KA127Y1.1KW,KA127Y1.5KW,KA127Y2.2KW,KA127Y3KW,KA127Y4KW,KA127Y5.5KW,KA127Y7.5KW,KA127Y11KW,KA127Y15KW,KA127Y18.5KW,KA127Y22KW,KA127Y30KW,KA127Y37KW,KA127Y45KW,KA127Y55KW,KA127Y75KW,KA127Y90KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。
轉角減速器KA127減速比：
減速器146.07比,減速器136.14比,減速器122.48比,減速器110.18比,減速器89.89比,減速器81.98比,減速器70.95比,減速器62.60比,減速器54.07比,減速器47.82比,減速器40.19比,減速器36.25比,減速器31.37比,減速器27.68比,減速器23.91比,減速器21.15比,減速器17.77比,減速器14.35比,減速器12.79比,減速器10.74比,減速器8.68比

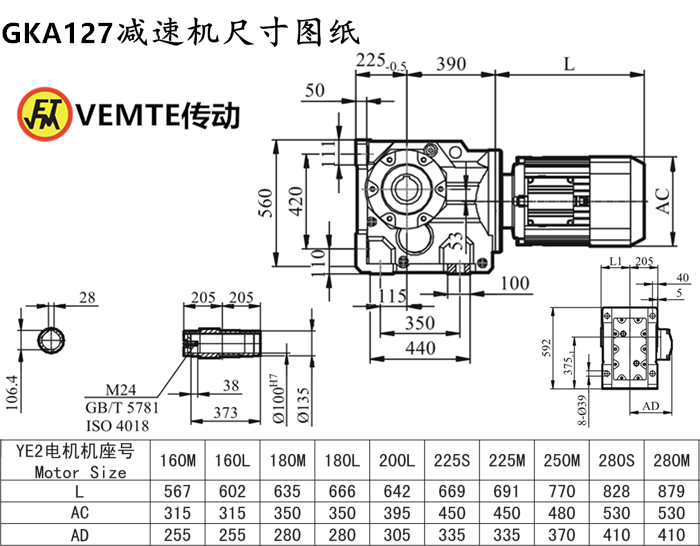

減速機KA127安裝尺寸：輸出孔+鍵Φ106.4（可定做），高560*寬400*長615
KA127伺服直角減速機輸出轉數：
減速機9.6rpm,減速機10rpm,減速機11rpm,減速機13rpm,減速機16rpm,減速機17rpm,減速機20rpm,減速機22rpm,減速機26rpm,減速機29rpm,減速機35rpm,減速機39rpm,減速機45rpm,減速機51rpm,減速機59rpm,減速機66rpm,減速機79rpm,減速機98rpm,減速機109rpm,減速機130rpm,減速機161rpm。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）
減速機KA127輸出扭矩：
減速箱13000Nm,減速箱12100Nm,減速箱8530Nm,減速箱8000Nm,減速箱7230Nm。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）
KA系列減速器KA127電機型號：KA127DV280S4,KA127DV225S4,KA127DV200S4,KA127DV180S4,KA127DV160S4,KA127DV132S4,KA127DV112S4,KA127DT280S4,KA127DT225S4,KA127DT200S4,KA127DT180S4,KA127DT160S4,KA127DT132S4,KA127DT112S4,KA127DRS280S4,KA127DRS225S4,KA127DRS200S4,KA127DRS180S4,KA127DRS160S4,KA127DRS132S4,KA127DRS112S4,KA127DRE280S4,KA127DRE225S4,KA127DRE200S4,KA127DRE180S4,KA127DRE160S4,KA127DRE132S4,KA127DRE112S4,KA127Y280S4,KA127Y225S4,KA127Y200S4,KA127Y180S4,KA127Y160S4,KA127Y132S4,KA127Y112S4,KA127DV280M4,KA127DV225M4,KA127DV200M4,KA127DV180M4,KA127DV160M4,KA127DV132M4,KA127DV112M4,KA127DT280M4,KA127DT225M4,KA127DT200M4,KA127DT180M4,KA127DT160M4,KA127DT132M4,KA127DT112M4,KA127DRS280M4,KA127DRS225M4,KA127DRS200M4,KA127DRS180M4,KA127DRS160M4,KA127DRS132M4,KA127DRS112M4,KA127DRE280M4,KA127DRE225M4,KA127DRE200M4,KA127DRE180M4,KA127DRE160M4,KA127DRE132M4,KA127DRE112M4,KA127Y280M4,KA127Y225M4,KA127Y200M4,KA127Y180M4,KA127Y160M4,KA127Y132M4,KA127Y112M4,KA127DV280L4,KA127DV225L4,KA127DV200L4,KA127DV180L4,KA127DV160L4,KA127DV132L4,KA127DV112L4,KA127DT280L4,KA127DT225L4,KA127DT200L4,KA127DT180L4,KA127DT160L4,KA127DT132L4,KA127DT112L4,KA127DRS280L4,KA127DRS225L4,KA127DRS200L4,KA127DRS180L4,KA127DRS160L4,KA127DRS132L4,KA127DRS112L4,KA127DRE280L4,KA127DRE225L4,KA127DRE200L4,KA127DRE180L4,KA127DRE160L4,KA127DRE132L4,KA127DRE112L4,KA127Y280L4,KA127Y225L4,KA127Y200L4,KA127Y180L4,KA127Y160L4,KA127Y132L4,KA127Y112L4
減速機KA127配各種電機實物圖：
減速機KA127生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://ammunjo.com/product/list-kaxiliejiansuji-cn.html
推薦類似型號：KAF127減速機
關鍵詞:空心軸減速機_直角中空減速機_中孔輸出減速機_通孔減速電機_KA系列減速機
KA系列齒輪減速機型號：KA37減速機,KA47減速機,KA57減速機,KA67減速機,KA77減速機,KA87減速機,KA97減速機,KA107減速機,KA127減速機,KA157減速機,KA167減速機,KA187減速機
KA系列直角減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13826972124，留言告知工程師參數要求
標簽: KA127型減速機 減速機KA127 KA127減速電機 KA127減速箱 GKA127減速箱
