KA187減速機詳細信息
KA187減速機
KA187減速機電機功率：轉角減速電機KA187Y0.75KW,KA187Y1.1KW,KA187Y1.5KW,KA187Y2.2KW,KA187Y3KW,KA187Y4KW,KA187Y5.5KW,KA187Y7.5KW,KA187Y11KW,KA187Y15KW,KA187Y18.5KW,KA187Y22KW,KA187Y30KW,KA187Y37KW,KA187Y45KW,KA187Y55KW,KA187Y75KW,KA187Y90KW,KA187Y110KW,KA187Y132KW,KA187Y160KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。
KA187直角軸減速電機減速比：
1:179.86減速器,1:165.21減速器,1:144.59減速器,1:129.69減速器,1:112.60減速器,1:102.16減速器,1:88減速器,1:73.96減速器,1:64.04減速器,1:53.36減速器,1:45.5減速器,1:42.51減速器,1:38.57減速器,1:33.23減速器,1:27.92減速器,1:24.18減速器,1:20.15減速器,1:17.18減速器

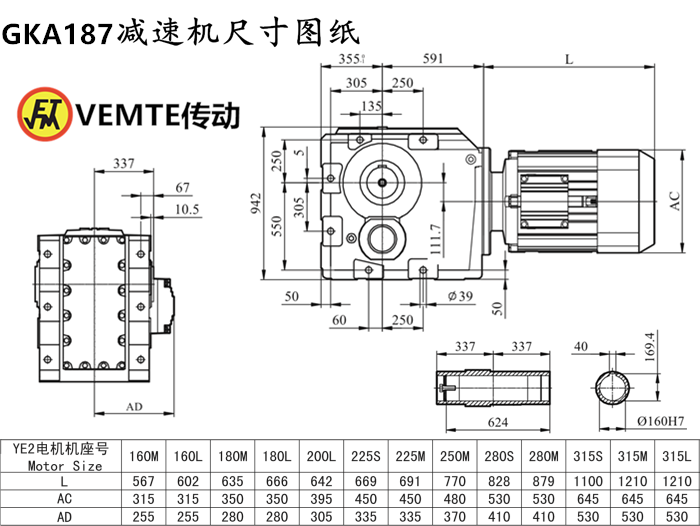

KA187減速機安裝尺寸：輸出孔+鍵Φ169.4（可定做），高942*寬640*長946
KA187減速機輸出轉數：
7.8rpm減速機,8.5rpm減速機,9.7rpm減速機,11rpm減速機,12rpm減速機,14rpm減速機,16rpm減速機,19rpm減速機,22rpm減速機,26rpm減速機,31rpm減速機,33rpm減速機,36rpm減速機,42rpm減速機,50rpm減速機,58rpm減速機,69rpm減速機,81rpm減速機。（以上rpm/min數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）
KA187大扭力減速電機輸出扭矩：
50000Nm減速箱,4760Nm減速箱,4390Nm減速箱,41400Nm減速箱。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）
KA187減速機電機型號：KA187DV180S4,KA187DV200S4,KA187DV225S4,KA187DV250S4,KA187DV280S4,KA187DV315S4,KA187DT180S4,KA187DT200S4,KA187DT225S4,KA187DT250S4,KA187DT280S4,KA187DT315S4,KA187DRS180S4,KA187DRS200S4,KA187DRS225S4,KA187DRS250S4,KA187DRS280S4,KA187DRS315S4,KA187DRE180S4,KA187DRE200S4,KA187DRE225S4,KA187DRE250S4,KA187DRE280S4,KA187DRE315S4,KA187Y180S4,KA187Y200S4,KA187Y225S4,KA187Y250S4,KA187Y280S4,KA187Y315S4,KA187DV180M4,KA187DV200M4,KA187DV225M4,KA187DV250M4,KA187DV280M4,KA187DV315M4,KA187DT180M4,KA187DT200M4,KA187DT225M4,KA187DT250M4,KA187DT280M4,KA187DT315M4,KA187DRS180M4,KA187DRS200M4,KA187DRS225M4,KA187DRS250M4,KA187DRS280M4,KA187DRS315M4,KA187DRE180M4,KA187DRE200M4,KA187DRE225M4,KA187DRE250M4,KA187DRE280M4,KA187DRE315M4,KA187Y180M4,KA187Y200M4,KA187Y225M4,KA187Y250M4,KA187Y280M4,KA187Y315M4,KA187DV180L4,KA187DV200L4,KA187DV225L4,KA187DV250L4,KA187DV280L4,KA187DV315L4,KA187DT180L4,KA187DT200L4,KA187DT225L4,KA187DT250L4,KA187DT280L4,KA187DT315L4,KA187DRS180L4,KA187DRS200L4,KA187DRS225L4,KA187DRS250L4,KA187DRS280L4,KA187DRS315L4,KA187DRE180L4,KA187DRE200L4,KA187DRE225L4,KA187DRE250L4,KA187DRE280L4,KA187DRE315L4,KA187Y180L4,KA187Y200L4,KA187Y225L4,KA187Y250L4,KA187Y280L4,KA187Y315L4
KA系列減速器KA187減速機配各種電機實物圖：可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
KA187減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://ammunjo.com/product/list-kaxiliejiansuji-cn.html
推薦類似型號：減速機K187
關鍵詞:空心軸減速機_直角中空減速機_中孔輸出減速機_通孔減速電機_KA系列減速機
KA系列齒輪減速機型號：KA37減速機,KA47減速機,KA57減速機,KA67減速機,KA77減速機,KA87減速機,KA97減速機,KA107減速機,KA127減速機,KA157減速機,KA167減速機,KA187減速機
KA系列直角減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13826972124，留言告知工程師參數要求
標簽: KA187斜齒輪減速機 KA187減速機尺寸圖紙 KA187減速機 減速電機KA187 減速電機GKA187
