KA47減速機詳細信息
KA47減速機
KA47減速機電機功率：
KA47Y0.12KW,KA47Y0.18KW,KA47Y0.25KW,KA47Y0.37KW,KA47Y0.55KW,KA47Y0.75KW,KA47Y1.1KW,KA47Y1.5KW,KA47Y2.2KW,KA47Y3KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。
KA47傘齒輪減速機減速比：
減速器1:131.87,減速器1:121.48,減速器1:104.37,減速器1:90.86,減速器1:85.12,減速器1:75.20,減速器1:69.84,減速器1:63.30,減速器1:56.83,減速器1:48.95,減速器1:46.03,減速器1:39.61,減速器1:35.39,減速器1:31.30,減速器1:29.32,減速器1:25.91,減速器1:24.06,減速器1:21.81,減速器1:19.58,減速器1:16.86,減速器1:15.86,減速器1:13.65,減速器1:12.19,減速器1:11.77,減速器1:10.56,減速器1:9.10,減速器1:8.56,減速器1:7.36,減速器1:6.58,減速器1:5.81,減速器1:4.64

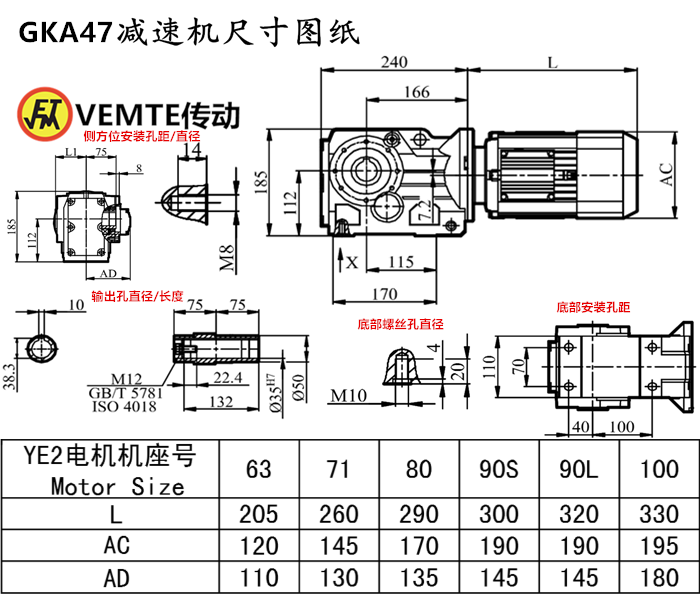

KA47減速機安裝尺寸：輸出孔+鍵Φ38.3（可定做），高185*寬145*長240
KA47減速機輸出轉數：直角減速機
11rpm減速機,12rpm減速機,13rpm減速機,15rpm減速機,16rpm減速機,19rpm減速機,20rpm減速機,22rpm減速機,25rpm減速機,29rpm減速機,30rpm減速機,35rpm減速機,40rpm減速機,45rpm減速機,48rpm減速機,54rpm減速機,58rpm減速機,64rpm減速機,72rpm減速機,83rpm減速機,88rpm減速機,103rpm減速機,115rpm減速機,119rpm減速機,133rpm減速機,154rpm減速機,164rpm減速機,190rpm減速機,213rpm減速機,241rpm減速機,302rpm減速機。（以上rpm/min數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）
KA47減速機輸出扭矩：
減速箱5920Nm,減速箱5700Nm,減速箱5520Nm,減速箱5170Nm,減速箱4970Nm,減速箱4710Nm,減速箱4440Nm,減速箱4220Nm,減速箱4080Nm,減速箱3890Nm,減速箱3720Nm,減速箱4060Nm,減速箱3830Nm,減速箱3540Nm,減速箱3500Nm,減速箱3380Nm,減速箱3270Nm,減速箱3140Nm,減速箱2980Nm。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）
KA系列減速機KA47減速機電機型號：KA47DRE100M4,KA47DRE63M4,KA47DRE71M4,KA47DRE80M4,KA47DRE90M4,KA47DRS100M4,KA47DRS63M4,KA47DRS71M4,KA47DRS80M4,KA47DRS90M4,KA47DT100M4,KA47DT63M4,KA47DT71M4,KA47DT80M4,KA47DT90M4,KA47DV100M4,KA47DV63M4,KA47DV71M4,KA47DV80M4,KA47DV90M4,KA47Y100M4,KA47Y63M4,KA47Y71M4,KA47Y80M4,KA47Y90M4,KA47DRE100L4,KA47DRE63L4,KA47DRE71L4,KA47DRE80L4,KA47DRE90L4,KA47DRS100L4,KA47DRS63L4,KA47DRS71L4,KA47DRS80L4,KA47DRS90L4,KA47DT100L4,KA47DT63L4,KA47DT71L4,KA47DT80L4,KA47DT90L4,KA47DV100L4,KA47DV63L4,KA47DV71L4,KA47DV80L4,KA47DV90L4,KA47Y100L4,KA47Y63L4,KA47Y71L4,KA47Y80L4,KA47Y90L4,KA47DRE100S4,KA47DRE63S4,KA47DRE71S4,KA47DRE80S4,KA47DRE90S4,KA47DRS100S4,KA47DRS63S4,KA47DRS71S4,KA47DRS80S4,KA47DRS90S4,KA47DT100S4,KA47DT63S4,KA47DT71S4,KA47DT80S4,KA47DT90S4,KA47DV100S4,KA47DV63S4,KA47DV71S4,KA47DV80S4,KA47DV90S4,KA47Y100S4,KA47Y63S4,KA47Y71S4,KA47Y80S4,KA47Y90S4
KA47減速機配各種電機實物圖：可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
直角減速機廠KA47減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://ammunjo.com/product/list-kaxiliejiansuji-cn.html
推薦類似型號：減速機KAF47
關鍵詞:空心軸減速機_直角中空減速機_中孔輸出減速機_通孔減速電機_KA系列減速機
KA系列齒輪減速機型號：KA37減速機,KA47減速機,KA57減速機,KA67減速機,KA77減速機,KA87減速機,KA97減速機,KA107減速機,KA127減速機,KA157減速機,KA167減速機,KA187減速機
KA系列直角減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13826972124，留言告知工程師參數要求
標簽: KA47臥式減速機 KA47減速機 減速電機KA47 KA47減速器 GKA47減速器
跟此產品相關的文檔 / Related DownLoad
| 產品文件名稱 | 點擊下載 |
| KA47減速機三維圖紙下載3D |
|
| KA系列減速機樣本 |
|
