K157減速機電機功率：伺服減速機K157Y0.55KW,K157Y0.75KW,K157Y1.1KW,K157Y1.5KW,K157Y2.2KW,K157Y3KW,K157Y4KW,K157Y5.5KW,K157Y7.5KW,K157Y11KW,K157Y15KW,K157Y18.5KW,K157Y22KW,K157Y30KW,K157Y37KW,K157Y45KW,K157Y55KW,K157Y75KW,K157Y90KW,K157Y110KW,K157Y132KW,K157Y160KW（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

K157錐齒輪減速機減速比：

150.41比減速器,122.39比減速器,100.22比減速器,91.65比減速器,79.75比減速器,70.38比減速器,61.02比減速器,54.29比減速器,46.79比減速器,38.02比減速器,31.3比減速器,27.62比減速器,23.95比減速器,21.31比減速器,18.37比減速器,14.92比減速器,12.65比減速器

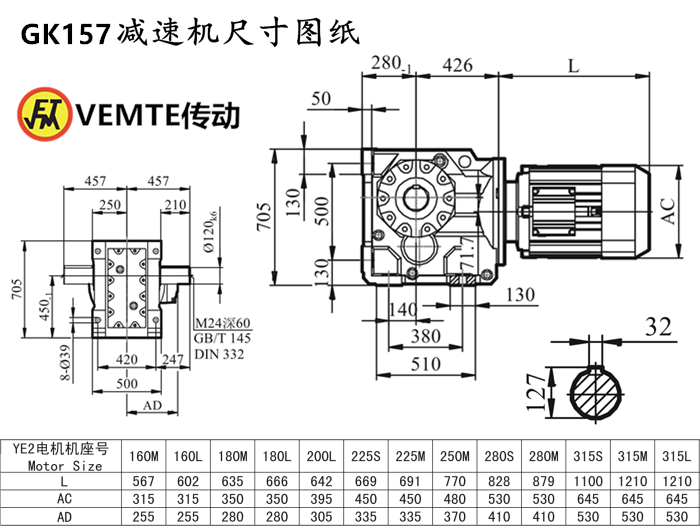

K157減速機安裝尺寸：輸出軸+鍵Φ127（可定做），高750*寬707（帶輸出軸）*長706

K157直角減速器輸出轉數：

9.3轉減速機,11轉減速機,14轉減速機,15轉減速機,18轉減速機,20轉減速機,23轉減速機,26轉減速機,30轉減速機,37轉減速機,45轉減速機,51轉減速機,58轉減速機,66轉減速機,76轉減速機,94轉減速機,111轉減速機。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

K157減速機輸出扭矩：

減速箱18000N.m,減速箱17000N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

K157減速機電機型號：K157DV160S4,K157DV180S4,K157DV200S4,K157DV225S4,K157DV250S4,K157DV280S4,K157DV315S4,K157DT160S4,K157DT180S4,K157DT200S4,K157DT225S4,K157DT250S4,K157DT280S4,K157DT315S4,K157DRS160S4,K157DRS180S4,K157DRS200S4,K157DRS225S4,K157DRS250S4,K157DRS280S4,K157DRS315S4,K157DRE160S4,K157DRE180S4,K157DRE200S4,K157DRE225S4,K157DRE250S4,K157DRE280S4,K157DRE315S4,K157Y160S4,K157Y180S4,K157Y200S4,K157Y225S4,K157Y250S4,K157Y280S4,K157Y315S4,K157DV160M4,K157DV180M4,K157DV200M4,K157DV225M4,K157DV250M4,K157DV280M4,K157DV315M4,K157DT160M4,K157DT180M4,K157DT200M4,K157DT225M4,K157DT250M4,K157DT280M4,K157DT315M4,K157DRS160M4,K157DRS180M4,K157DRS200M4,K157DRS225M4,K157DRS250M4,K157DRS280M4,K157DRS315M4,K157DRE160M4,K157DRE180M4,K157DRE200M4,K157DRE225M4,K157DRE250M4,K157DRE280M4,K157DRE315M4,K157Y160M4,K157Y180M4,K157Y200M4,K157Y225M4,K157Y250M4,K157Y280M4,K157Y315M4,K157DV160L4,K157DV180L4,K157DV200L4,K157DV225L4,K157DV250L4,K157DV280L4,K157DV315L4,K157DT160L4,K157DT180L4,K157DT200L4,K157DT225L4,K157DT250L4,K157DT280L4,K157DT315L4,K157DRS160L4,K157DRS180L4,K157DRS200L4,K157DRS225L4,K157DRS250L4,K157DRS280L4,K157DRS315L4,K157DRE160L4,K157DRE180L4,K157DRE200L4,K157DRE225L4,K157DRE250L4,K157DRE280L4,K157DRE315L4,K157Y160L4,K157Y180L4,K157Y200L4,K157Y225L4,K157Y250L4,K157Y280L4,K157Y315L4

K系列減速機K157減速機配各種電機的實物圖：可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間

K157減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://ammunjo.com/product/list-kxiliejiansuji-cn.html

推薦類似型號：KF157減速機
