減速機K67電機功率：K系列減速機

K67Y0.18KW,K67Y0.25KW,K67Y0.37KW,K67Y0.55KW,K67Y0.75KW,K67Y1.1KW,K67Y1.5KW,K67Y2.2KW,K67Y3KW,K67Y4KW,K67Y5.5KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

減速機K67減速比：

減速器1:144.79,減速器1:123.54,減速器1:108.03,減速器1:102.62,減速器1:90.04,減速器1:76.37,減速器1:68.95,減速器1:60.66,減速器1:57.28,減速器1:48.77,減速器1:44.32,減速器1:38.39,減速器1:35.62,減速器1:30.22,減速器1:27.28,減速器1:24,減速器1:22.66,減速器1:19.3,減速器1:17.54,減速器1:15.19,減速器1:13.22,減速器1:12.48,減速器1:10.63,減速器1:9.66,減速器1:8.37,減速器1:7.28,減速器1:5.2

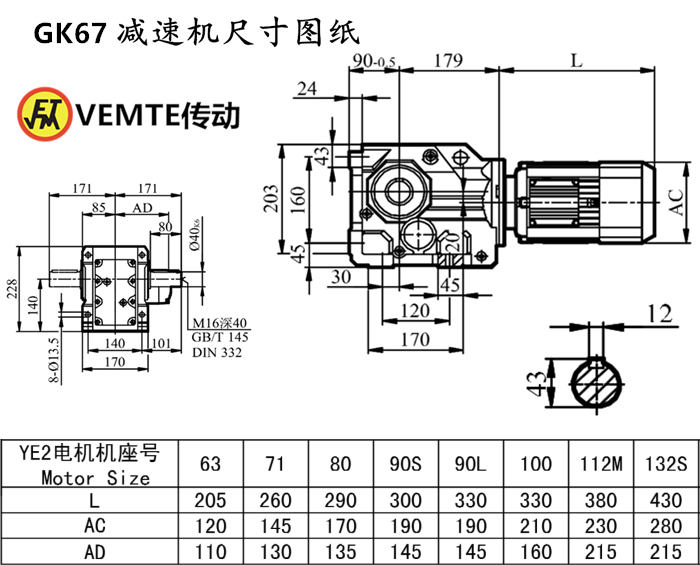

傘齒輪減速器K67安裝尺寸：輸出軸+鍵Φ43（可定做），高228*寬256（帶輸出軸）*長269

減速機K67輸出轉數(shù)：

9.7rpm/min減速機,11rpm/min減速機,13rpm/min減速機,14rpm/min減速機,16rpm/min減速機,18rpm/min減速機,20rpm/min減速機,23rpm/min減速機,24rpm/min減速機,29rpm/min減速機,32rpm/min減速機,36rpm/min減速機,39rpm/min減速機,46rpm/min減速機,51rpm/min減速機,58rpm/min減速機,62rpm/min減速機,73rpm/min減速機,80rpm/min減速機,92rpm/min減速機,106rpm/min減速機,112rpm/min減速機,132rpm/min減速機,145rpm/min減速機,167rpm/min減速機,192rpm/min減速機,269rpm/min減速機。（以上rpm/min數(shù)均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

GK系列減速器GK67輸出扭矩：

820N.m減速箱,780N.m減速箱,760N.m減速箱,740N.m減速箱,700N.m減速箱,670N.m減速箱,530N.m減速箱,500N.m減速箱,480N.m減速箱,440N.m減速箱,420N.m減速箱,350N.m減速箱。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

減速機K67電機型號：K67DRE100M4,K67DRE112M4,K67DRE132M4,K67DRE63M4,K67DRE71M4,K67DRE80M4,K67DRE90M4,K67DRS100M4,K67DRS112M4,K67DRS132M4,K67DRS63M4,K67DRS71M4,K67DRS80M4,K67DRS90M4,K67DT100M4,K67DT112M4,K67DT132M4,K67DT63M4,K67DT71M4,K67DT80M4,K67DT90M4,K67DV100M4,K67DV112M4,K67DV132M4,K67DV63M4,K67DV71M4,K67DV80M4,K67DV90M4,K67Y100M4,K67Y112M4,K67Y132M4,K67Y63M4,K67Y71M4,K67Y80M4,K67Y90M4,K67DRE100S4,K67DRE112S4,K67DRE132S4,K67DRE63S4,K67DRE71S4,K67DRE80S4,K67DRE90S4,K67DRS100S4,K67DRS112S4,K67DRS132S4,K67DRS63S4,K67DRS71S4,K67DRS80S4,K67DRS90S4,K67DT100S4,K67DT112S4,K67DT132S4,K67DT63S4,K67DT71S4,K67DT80S4,K67DT90S4,K67DV100S4,K67DV112S4,K67DV132S4,K67DV63S4,K67DV71S4,K67DV80S4,K67DV90S4,K67Y100S4,K67Y112S4,K67Y132S4,K67Y63S4,K67Y71S4,K67Y80S4,K67Y90S4,K67DRE100L4,K67DRE112L4,K67DRE132L4,K67DRE63L4,K67DRE71L4,K67DRE80L4,K67DRE90L4,K67DRS100L4,K67DRS112L4,K67DRS132L4,K67DRS63L4,K67DRS71L4,K67DRS80L4,K67DRS90L4,K67DT100L4,K67DT112L4,K67DT132L4,K67DT63L4,K67DT71L4,K67DT80L4,K67DT90L4,K67DV100L4,K67DV112L4,K67DV132L4,K67DV63L4,K67DV71L4,K67DV80L4,K67DV90L4,K67Y100L4,K67Y112L4,K67Y132L4,K67Y63L4,K67Y71L4,K67Y80L4,K67Y90L4

伺服直角減速器K67配各種電機的實物圖：可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間

減速機K67生產工廠展示：看廠請聯(lián)系微信13826972124，獲取位置，需提前一天預約http://ammunjo.com/product/list-kxiliejiansuji-cn.html

推薦類似型號：KF67減速機
