減速機FA127詳細信息

prevnext

減速機FA127

訂購熱線:15818497138
  1. 詳細信息

FA127齒輪減速電機功率:

FA127Y7.5KW,FA127Y11KW,FA127Y15KW,FA127Y18.5KW,FA127Y22KW,FA127Y30KW,FA127Y37KW,FA127Y45KW,FA127Y55KW,FA127Y75KW,FA127Y90KW。(可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機)。

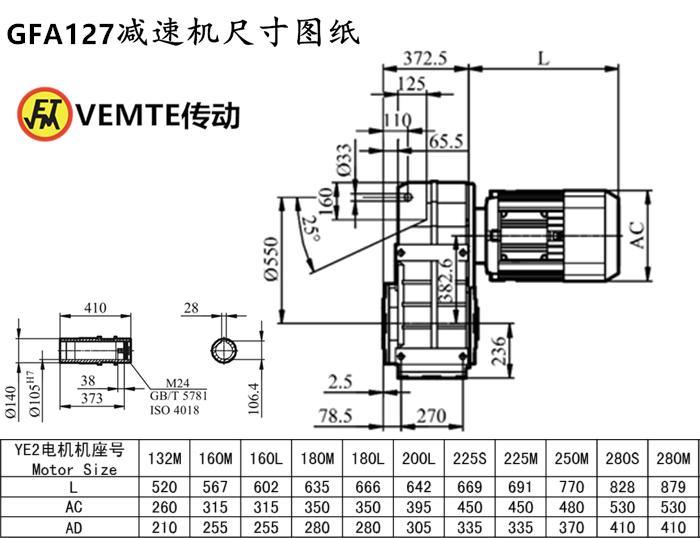

減速機FA127安裝尺寸:輸出孔Φ106.4(可定做),高856*寬530*長585


減速機FA127減速比:

減速機1:170,減速機1:153,減速機1:125,減速機1:114,減速機1:98,減速機1:87,減速機1:75,減速機1:70,減速機1:63,減速機1:55,減速機1:48,減速機1:42,減速機1:37,減速機1:31,減速機1:25,減速機1:26,減速機1:24,減速機1:21,減速機1:18,減速機1:16,減速機1:14,減速機1:12,減速機1:10,減速機1:8,減速機1:7,減速機1:6,減速機1:5,減速機1:4 平行軸斜齒輪減速機

減速機FA127輸出轉數:

減速機8.2轉,減速機9.1轉,減速機11轉,減速機12轉,減速機14轉,減速機16轉,減速機19轉,減速機20轉,減速機22轉,減速機25轉,減速機29轉,減速機33轉,減速機38轉,減速機45轉,減速機55轉,減速機52轉,減速機57轉,減速機65轉,減速機74轉,減速機86轉,減速機96轉,減速機112轉,減速機137轉,減速機158轉,減速機178轉,減速機206轉,減速機254轉,減速機299轉減速機。(以上轉數均為四級電機算出的,可用兩級電機,六級電機計算,也可以用變頻電機調速)


GFA系列減速機FA127輸出扭矩:

12000Nm減速機,11000Nm減速機,10000Nm減速機,9500Nm減速機,8500Nm減速機,7000Nm減速機,6000Nm減速機。(以上扭矩均為四級電機得出扭矩,需要比上面更大的扭矩,可把電機功率加大,減速機型號加大)

減速機FA127電機型號:

FA127DRE132M4,FA127DRE160M4,FA127DRE180M4,FA127DRE200M4,FA127DRE225M4,FA127DRE250M4,FA127DRE280M4,FA127DRS132M4,FA127DRS160M4,FA127DRS180M4,FA127DRS200M4,FA127DRS225M4,FA127DRS250M4,FA127DRS280M4,FA127DT132M4,FA127DT160M4,FA127DT180M4,FA127DT200M4,FA127DT225M4,FA127DT250M4,FA127DT280M4,FA127DV132M4,FA127DV160M4,FA127DV180M4,FA127DV200M4,FA127DV225M4,FA127DV250M4,FA127DV280M4,FA127Y132M4,FA127Y160M4,FA127Y180M4,FA127Y200M4,FA127Y225M4,FA127Y250M4,FA127Y280M4,FA127DRE132L4,FA127DRE160L4,FA127DRE180L4,FA127DRE200L4,FA127DRE225L4,FA127DRE250L4,FA127DRE280L4,FA127DRS132L4,FA127DRS160L4,FA127DRS180L4,FA127DRS200L4,FA127DRS225L4,FA127DRS250L4,FA127DRS280L4,FA127DT132L4,FA127DT160L4,FA127DT180L4,FA127DT200L4,FA127DT225L4,FA127DT250L4,FA127DT280L4,FA127DV132L4,FA127DV160L4,FA127DV180L4,FA127DV200L4,FA127DV225L4,FA127DV250L4,FA127DV280L4,FA127Y132L4,FA127Y160L4,FA127Y180L4,FA127Y200L4,FA127Y225L4,FA127Y250L4,FA127Y280L4,FA127DRE132S4,FA127DRE160S4,FA127DRE180S4,FA127DRE200S4,FA127DRE225S4,FA127DRE250S4,FA127DRE280S4,FA127DRS132S4,FA127DRS160S4,FA127DRS180S4,FA127DRS200S4,FA127DRS225S4,FA127DRS250S4,FA127DRS280S4,FA127DT132S4,FA127DT160S4,FA127DT180S4,FA127DT200S4,FA127DT225S4,FA127DT250S4,FA127DT280S4,FA127DV132S4,FA127DV160S4,FA127DV180S4,FA127DV200S4,FA127DV225S4,FA127DV250S4,FA127DV280S4,FA127Y132S4,FA127Y160S4,FA127Y180S4,FA127Y200S4,FA127Y225S4,FA127Y250S4,FA127Y280S4帶減速機的電機

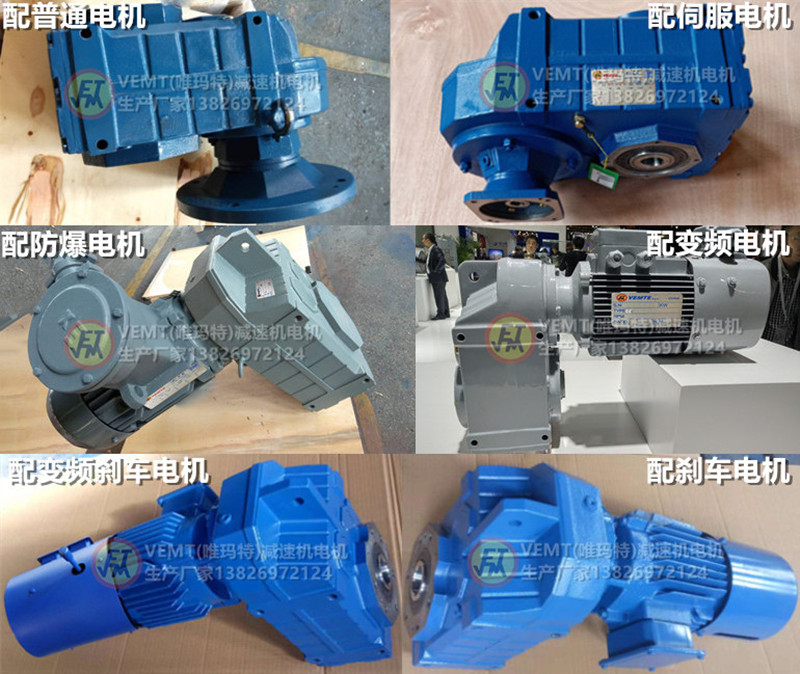

減速機FA127配各種電機實物圖:


減速機FA127生產工廠展示:看廠請聯系微信13826972124,獲取位置,需提前一天預約http://ammunjo.com/product/list-faxiliejiansuji-cn.html


推薦類似型號:FAF127減速機

關鍵詞:防爆電機減速機_分體減速機電機_FA系列減速機_GFA型減速器生產廠家

FA系列齒輪減速機型號:FA27減速機,FA37減速機,FA47減速機,FA67減速機,FA77減速機,FA87減速機,FA97減速機,FA107減速機,FA127減速機,FA157減速機

FA系列電動機減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-132KW之間

如需工程師幫選型,請加微信13826972124,留言告知工程師參數要求


標簽:  FA127減速馬達生產廠家 減速機FA127 FA127減速電機 FA127減速箱 GFA127減速箱

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
FA127減速機三維圖紙下載3D 點擊下載
FA系列減速機樣本 點擊下載
