FA157減速機電機功率：齒輪減速馬達

FA157Y11KW,FA157Y15KW,FA157Y18.5KW,FA157Y22KW,FA157Y30KW,FA157Y37KW,FA157Y45KW,FA157Y55KW,FA157Y75KW,FA157Y90KW,FA157Y110KW,FA157Y132KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

FA157減速機安裝尺寸：輸出孔Φ127.4（可定做），高1006*寬660*長662

FA157減速機減速比：

減速機267比,減速機217比,減速機178比,減速機162比,減速機141比,減速機125比,減速機108比,減速機96比,減速機85比,減速機78比,減速機68比,減速機60比,減速機52比,減速機46比,減速機40比,減速機32比,減速機27比,減速機53比,減速機43比,減速機35比,減速機28比,減速機25比,減速機22比,減速機19比,減速機16比,減速機13比,減速機11比

齒輪減速機FA157輸出轉數：

減速機117rpm/min,減速機5.2rpm/min,減速機6.4rpm/min,減速機7.9rpm/min,減速機8.6rpm/min,減速機9.9rpm/min,減速機11rpm/min,減速機13rpm/min,減速機15rpm/min,減速機16rpm/min,減速機18rpm/min,減速機21rpm/min,減速機23rpm/min,減速機27rpm/min,減速機30rpm/min,減速機35rpm/min,減速機43rpm/min,減速機51rpm/min,減速機26rpm/min,減速機32rpm/min,減速機39rpm/min,減速機49rpm/min,減速機55rpm/min,減速機63rpm/min,減速機71rpm/min,減速機83rpm/min,減速機100rpm/min。（以上rpm/min數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

FA157平行軸斜齒輪減速機輸出扭矩：

減速機18000Nm,減速機17000Nm,減速機16000Nm,減速機15000Nm,減速機11000Nm,減速機10000Nm,減速機8000Nm。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

FA157減速機電機型號：

FA157DRE160M4,FA157DRE180M4,FA157DRE200M4,FA157DRE225M4,FA157DRE250M4,FA157DRE280M4,FA157DRE315M4,FA157DRS160M4,FA157DRS180M4,FA157DRS200M4,FA157DRS225M4,FA157DRS250M4,FA157DRS280M4,FA157DRS315M4,FA157DT160M4,FA157DT180M4,FA157DT200M4,FA157DT225M4,FA157DT250M4,FA157DT280M4,FA157DT315M4,FA157DV160M4,FA157DV180M4,FA157DV200M4,FA157DV225M4,FA157DV250M4,FA157DV280M4,FA157DV315M4,FA157Y160M4,FA157Y180M4,FA157Y200M4,FA157Y225M4,FA157Y250M4,FA157Y280M4,FA157Y315M4,FA157DRE160L4,FA157DRE180L4,FA157DRE200L4,FA157DRE225L4,FA157DRE250L4,FA157DRE280L4,FA157DRE315L4,FA157DRS160L4,FA157DRS180L4,FA157DRS200L4,FA157DRS225L4,FA157DRS250L4,FA157DRS280L4,FA157DRS315L4,FA157DT160L4,FA157DT180L4,FA157DT200L4,FA157DT225L4,FA157DT250L4,FA157DT280L4,FA157DT315L4,FA157DV160L4,FA157DV180L4,FA157DV200L4,FA157DV225L4,FA157DV250L4,FA157DV280L4,FA157DV315L4,FA157Y160L4,FA157Y180L4,FA157Y200L4,FA157Y225L4,FA157Y250L4,FA157Y280L4,FA157Y315L4,FA157DRE160S4,FA157DRE180S4,FA157DRE200S4,FA157DRE225S4,FA157DRE250S4,FA157DRE280S4,FA157DRE315S4,FA157DRS160S4,FA157DRS180S4,FA157DRS200S4,FA157DRS225S4,FA157DRS250S4,FA157DRS280S4,FA157DRS315S4,FA157DT160S4,FA157DT180S4,FA157DT200S4,FA157DT225S4,FA157DT250S4,FA157DT280S4,FA157DT315S4,FA157DV160S4,FA157DV180S4,FA157DV200S4,FA157DV225S4,FA157DV250S4,FA157DV280S4,FA157DV315S4,FA157Y160S4,FA157Y180S4,FA157Y200S4,FA157Y225S4,FA157Y250S4,FA157Y280S4,FA157Y315S4

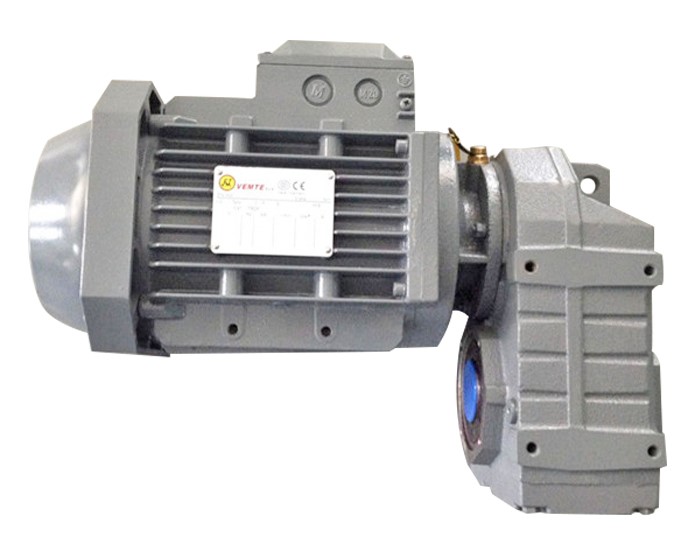

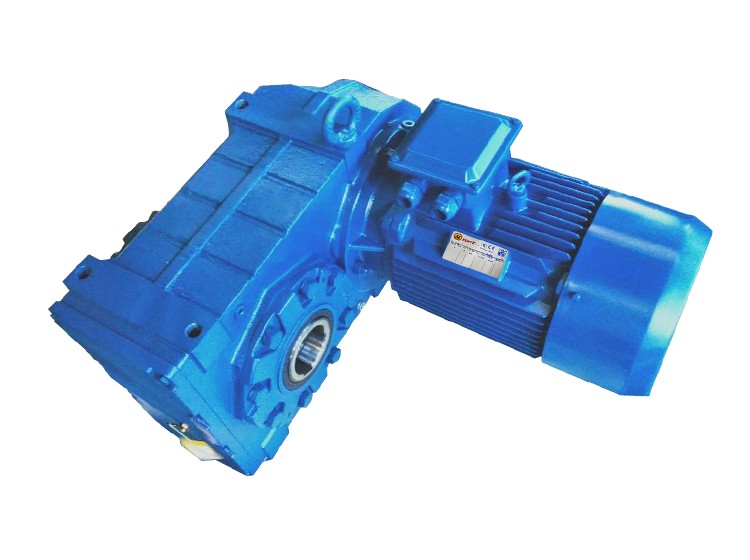

FA系列減速電機FA157配各種減速機實物圖：

FA157減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://ammunjo.com/product/list-faxiliejiansuji-cn.html

推薦類似型號：減速機FAF157
