F77減速機電機功率：F系列減速電機

F77Y0.12KW,F77Y0.18KW,F77Y0.25KW,F77Y0.37KW,F77Y0.55KW,F77Y0.75KW,F77Y1.1KW,F77Y1.5KW,F77Y2.2KW,F77Y3KW,F77Y4KW,F77Y5.5KW電機,F77Y7.5KW,F77Y11KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

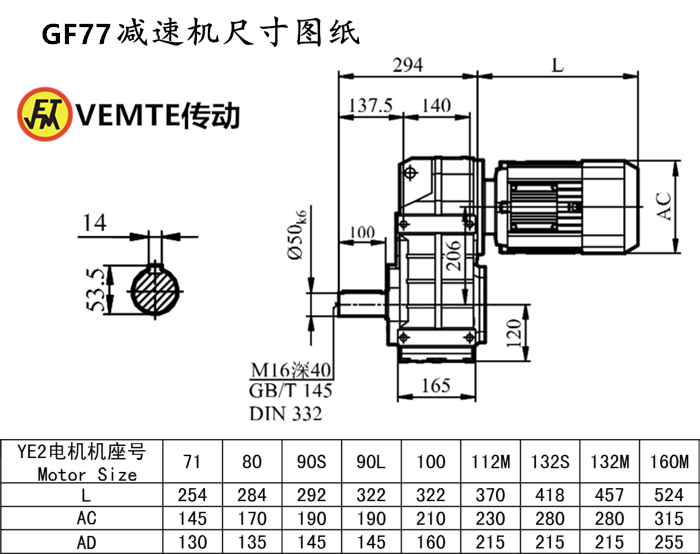

F77減速機安裝尺寸：輸出軸Φ50+鍵3.5（可定做），高431*寬270*長294（帶輸出軸）

F77齒輪減速器減速比：

1:281減速機,1:262減速機,1:225減速機,1:198減速機,1:188減速機,1:166減速機,1:142減速機,1:130減速機,1:114減速機,1:108減速機,1:94減速機,1:85減速機,1:75減速機,1:72減速機,1:66減速機,1:58減速機,1:55減速機,1:48減速機,1:43減速機,1:38減速機,1:33減速機,1:30減速機,1:25減速機,1:36減速機,1:31減速機,1:28減速機,1:25減速機,1:21減速機,1:19減速機,1:17減速機,1:15減速機,1:14減速機,1:12減速機,1:10減速機,1:9減速機,1:8減速機,1:7減速機,1:6減速機,1:5減速機,1:4減速機

F77減速機輸出轉數：

5轉減速機,6轉減速機,7轉減速機,8轉減速機,9轉減速機,11轉減速機,12轉減速機,13轉減速機,15轉減速機,16轉減速機,19轉減速機,21轉減速機,24轉減速機,25轉減速機,29轉減速機,32轉減速機,37轉減速機,41轉減速機,47轉減速機,55轉減速機,38轉減速機,44轉減速機,49轉減速機,55轉減速機,65轉減速機,71轉減速機,80轉減速機,90轉減速機,100轉減速機,115轉減速機,128轉減速機,151轉減速機,169轉減速機,189轉減速機,211轉減速機,243轉減速機,271轉減速機,327轉減速機。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

F77平行軸減速機輸出扭矩：

1500N.m減速機,1450N.m減速機,1110N.m減速機,1380N.m減速機,1430N.m減速機,1080N.m減速機,1010N.m減速機。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大）

F77減速機電機型號：F77DRE100L4,F77DRE112L4,F77DRE132L4,F77DRE160L4,F77DRE63L4,F77DRE71L4,F77DRE80L4,F77DRE90L4,F77DRS100L4,F77DRS112L4,F77DRS132L4,F77DRS160L4,F77DRS63L4,F77DRS71L4,F77DRS80L4,F77DRS90L4,F77DT100L4,F77DT112L4,F77DT132L4,F77DT160L4,F77DT63L4,F77DT71L4,F77DT80L4,F77DT90L4,F77DV100L4,F77DV112L4,F77DV132L4,F77DV160L4,F77DV63L4,F77DV71L4,F77DV80L4,F77DV90L4,F77Y100L4,F77Y112L4,F77Y132L4,F77Y160L4,F77Y63L4,F77Y71L4,F77Y80L4,F77Y90L4,F77DRE100M4,F77DRE112M4,F77DRE132M4,F77DRE160M4,F77DRE63M4,F77DRE71M4,F77DRE80M4,F77DRE90M4,F77DRS100M4,F77DRS112M4,F77DRS132M4,F77DRS160M4,F77DRS63M4,F77DRS71M4,F77DRS80M4,F77DRS90M4,F77DT100M4,F77DT112M4,F77DT132M4,F77DT160M4,F77DT63M4,F77DT71M4,F77DT80M4,F77DT90M4,F77DV100M4,F77DV112M4,F77DV132M4,F77DV160M4,F77DV63M4,F77DV71M4,F77DV80M4,F77DV90M4,F77Y100M4,F77Y112M4,F77Y132M4,F77Y160M4,F77Y63M4,F77Y71M4,F77Y80M4,F77Y90M4,F77DRE100S4,F77DRE112S4,F77DRE132S4,F77DRE160S4,F77DRE63S4,F77DRE71S4,F77DRE80S4,F77DRE90S4,F77DRS100S4,F77DRS112S4,F77DRS132S4,F77DRS160S4,F77DRS63S4,F77DRS71S4,F77DRS80S4,F77DRS90S4,F77DT100S4,F77DT112S4,F77DT132S4,F77DT160S4,F77DT63S4,F77DT71S4,F77DT80S4,F77DT90S4,F77DV100S4,F77DV112S4,F77DV132S4,F77DV160S4,F77DV63S4,F77DV71S4,F77DV80S4,F77DV90S4,F77Y100S4,F77Y112S4,F77Y132S4,F77Y160S4,F77Y63S4,F77Y71S4,F77Y80S4,F77Y90S4

GF系列減速器GF77減速機配各種電機的實物圖：

F77減速機生產工廠展示：看廠請聯(lián)系微信13826972124，獲取位置，需提前一天預約http://ammunjo.com/product/list-fxiliejiansuji-cn.html

推薦類似型號：減速機FF77
