F67減速機電機功率：

F67Y0.12KW,F67Y0.18KW,F67Y0.25KW,F67Y0.37KW,F67Y0.55KW,F67Y0.75KW,F67Y1.1KW,F67Y1.5KW,F67Y2.2KW,F67Y3KW,F67Y4KW,F67Y5.5KW電機.（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

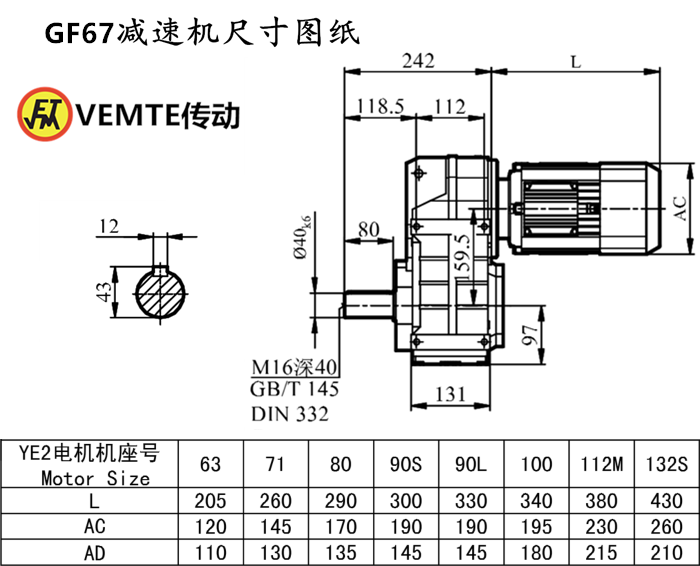

F系列減速機F67安裝尺寸：輸出軸Φ40+鍵3（可定做），高343*寬212*長242（帶輸出軸）

F67齒輪減速器減速比：

1:229減速機,1:195減速機,1:170減速機,1:162減速機,1:142減速機,1:120減速機,1:109減速機,1:95減速機,1:90減速機,1:79減速機,1:67減速機,1:61減速機,1:53減速機,1:50減速機,1:43減速機,1:39減速機,1:34減速機,1:36減速機,1:32減速機,1:27減速機,1:25減速機,1:22減速機,1:20減速機,1:18減速機,1:16減速機,1:14減速機,1:12減速機,1:11減速機,1:9減速機,1:8減速機,1:7減速機,1:6減速機,1:5減速機,1:4減速機,1:3減速機

F67減速機輸出轉數：

6轉減速機,7轉減速機,8轉減速機,9轉減速機,12轉減速機,13轉減速機,15轉減速機,18轉減速機,21轉減速機,23轉減速機,26轉減速機,28轉減速機,32轉減速機,36轉減速機,41轉減速機,39轉減速機,44轉減速機,51轉減速機,56轉減速機,63轉減速機,67轉減速機,77轉減速機,85轉減速機,97轉減速機,110轉減速機,124轉減速機,145轉減速機,154轉減速機,163轉減速機,186轉減速機,206轉減速機,235轉減速機,267轉減速機,300轉減速機,353轉減速機。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）F系列減速機

F67偏心減速機輸出扭矩：

820N.m減速機,780N.m減速機,740N.m減速機,620N.m減速機,610N.m減速機,590N.m減速機,570N.m減速機,560N.m減速機,530N.m減速機,500N.m減速機。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大）

F67減速機電機型號：F67DRE100S4,F67DRE112S4,F67DRE132S4,F67DRE63S4,F67DRE71S4,F67DRE80S4,F67DRE90S4,F67DRS100S4,F67DRS112S4,F67DRS132S4,F67DRS63S4,F67DRS71S4,F67DRS80S4,F67DRS90S4,F67DT100S4,F67DT112S4,F67DT132S4,F67DT63S4,F67DT71S4,F67DT80S4,F67DT90S4,F67DV100S4,F67DV112S4,F67DV132S4,F67DV63S4,F67DV71S4,F67DV80S4,F67DV90S4,F67Y100S4,F67Y112S4,F67Y132S4,F67Y63S4,F67Y71S4,F67Y80S4,F67Y90S4,F67DRE100M4,F67DRE112M4,F67DRE132M4,F67DRE63M4,F67DRE71M4,F67DRE80M4,F67DRE90M4,F67DRS100M4,F67DRS112M4,F67DRS132M4,F67DRS63M4,F67DRS71M4,F67DRS80M4,F67DRS90M4,F67DT100M4,F67DT112M4,F67DT132M4,F67DT63M4,F67DT71M4,F67DT80M4,F67DT90M4,F67DV100M4,F67DV112M4,F67DV132M4,F67DV63M4,F67DV71M4,F67DV80M4,F67DV90M4,F67Y100M4,F67Y112M4,F67Y132M4,F67Y63M4,F67Y71M4,F67Y80M4,F67Y90M4,F67DRE100L4,F67DRE112L4,F67DRE132L4,F67DRE63L4,F67DRE71L4,F67DRE80L4,F67DRE90L4,F67DRS100L4,F67DRS112L4,F67DRS132L4,F67DRS63L4,F67DRS71L4,F67DRS80L4,F67DRS90L4,F67DT100L4,F67DT112L4,F67DT132L4,F67DT63L4,F67DT71L4,F67DT80L4,F67DT90L4,F67DV100L4,F67DV112L4,F67DV132L4,F67DV63L4,F67DV71L4,F67DV80L4,F67DV90L4,F67Y100L4,F67Y112L4,F67Y132L4,F67Y63L4,F67Y71L4,F67Y80L4,F67Y90L4

F67減速機配各種電機的實物圖：

F67減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://ammunjo.com/product/list-fxiliejiansuji-cn.html

推薦類似型號：減速機FF67
