SF57減速機電機功率：

SF57Y0.12KW,SF57Y0.18KW,SF57Y0.25KW,SF57Y0.37KW,SF57Y0.55KW,SF57Y0.75KW,SF57Y1.1KW,SF57Y1.5KW,SF57Y2.2KW,SF57Y3KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

SF57蝸輪蝸桿減速機減速比：

201比減速機,184.8比減速機,158.12比減速機,137.05比減速機,128.1比減速機,110.73比減速機,98.08比減速機,84比減速機,71.75比減速機,69.39比減速機,67.2比減速機,63.8比減速機,56.61比減速機,54.59比減速機,47.32比減速機,44.22比減速機,38.23比減速機,32.48比減速機,29比減速機,24.77比減速機,23.2比減速機,20.33比減速機,19.54比減速機,17.62比減速機,16.47比減速機,14.24比減速機,12.1比減速機,10.8比減速機,9.23比減速機,8.64比減速機,7.28比減速機,6.83比減速機,6.4比減速機,5.39比減速機,4.76比減速機,4比減速機

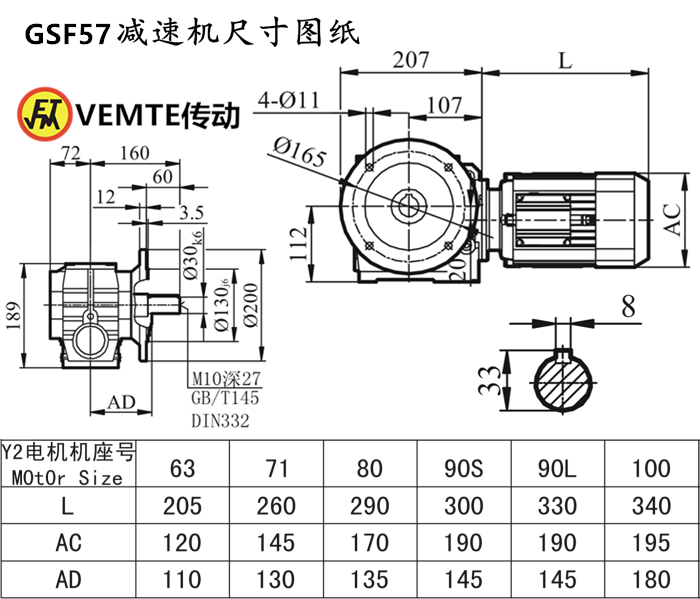

SF57減速機安裝尺寸：輸出軸+鍵Φ33（可定做），高189*寬232（帶輸出軸）*長187

SF57減速箱輸出轉數：伺服電機減速機

7轉減速箱,7.6轉減速箱,8.9轉減速箱,10轉減速箱,11轉減速箱,13轉減速箱,15轉減速箱,17轉減速箱,20轉減速箱,21轉減速箱,22轉減速箱,25轉減速箱,26轉減速箱,30轉減速箱,37轉減速箱,43轉減速箱,48轉減速箱,57轉減速箱,60轉減速箱,69轉減速箱,72轉減速箱,79轉減速箱,85轉減速箱,98轉減速箱,116轉減速箱,130轉減速箱,152轉減速箱,162轉減速箱,192轉減速箱,205轉減速箱,219轉減速箱,260轉減速箱,294轉減速箱,350轉減速箱。（以上rpm數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

SF57減速機輸出扭矩：

88Nm減速器,93Nm減速器,95Nm減速器,98Nm減速器,100Nm減速器,146Nm減速器,166Nm減速器,168Nm減速器,169Nm減速器,215Nm減速器,245Nm減速器,265Nm減速器,285Nm減速器,290Nm減速器,295N.m減速器。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大,或者兩個減速機組合使用）

SF57渦輪減速機型號：SF57DV63S4,SF57DV71S4,SF57DV80S4,SF57DV90S4,SF57DV100S4,SF57DT63S4,SF57DT71S4,SF57DT80S4,SF57DT90S4,SF57DT100S4,SF57DRE63S4,SF57DRE71S4,SF57DRE80S4,SF57DRE90S4,SF57DRE100S4,SF57DRS63S4,SF57DRS71S4,SF57DRS80S4,SF57DRS90S4,SF57DRS100S4,SF57Y63S4,SF57Y71S4,SF57Y80S4,SF57Y90S4,SF57Y100S4,SF57DV63M4,SF57DV71M4,SF57DV80M4,SF57DV90M4,SF57DV100M4,SF57DT63M4,SF57DT71M4,SF57DT80M4,SF57DT90M4,SF57DT100M4,SF57DRE63M4,SF57DRE71M4,SF57DRE80M4,SF57DRE90M4,SF57DRE100M4,SF57DRS63M4,SF57DRS71M4,SF57DRS80M4,SF57DRS90M4,SF57DRS100M4,SF57Y63M4,SF57Y71M4,SF57Y80M4,SF57Y90M4,SF57Y100M4,SF57DV63L4,SF57DV71L4,SF57DV80L4,SF57DV90L4,SF57DV100L4,SF57DT63L4,SF57DT71L4,SF57DT80L4,SF57DT90L4,SF57DT100L4,SF57DRE63L4,SF57DRE71L4,SF57DRE80L4,SF57DRE90L4,SF57DRE100L4,SF57DRS63L4,SF57DRS71L4,SF57DRS80L4,SF57DRS90L4,SF57DRS100L4,SF57Y63L4,SF57Y71L4,SF57Y80L4,SF57Y90L4,SF57Y100L4

SF系列減速器搭配各種電機實物圖：

SF57減速機工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://ammunjo.com/product/list-sfxiliejiansuji-cn.html

推薦類似型號：減速機SA57
