RX67減速機電機功率：

RX67Y0.12KW,RX67Y0.18KW,RX67Y0.25KW,RX67Y0.37KW,RX67Y0.55KW,RX67Y0.75KW,RX67Y1.1KW,RX67Y1.5KW,RX67Y2.2KW,RX67Y3KW,RX67Y4KW,RX67Y5.5KW,RX67Y7.5KW。（可配變頻電機減速機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

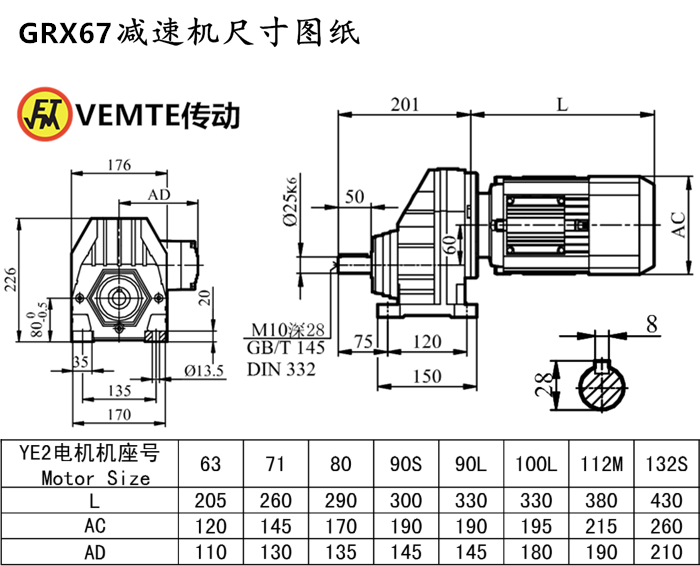

RX67減速機安裝尺寸：輸出軸Φ25+鍵3（可定做），高226*寬170*長201（帶輸出軸）

齒輪減速機RX67減速比：

1:1.4減速器,1:1.61減速器,1:1.86減速器,1:2.04減速器,1:2.4減速器,1:2.54減速器,1:2.89減速器,1:3.2減速器,1:3.77減速器,1:4.3減速器,1:4.53減速器,1:5.18減速器,1:6.07減速器

RX67減速機輸出轉數：

231rpm減速機,270rpm減速機,309rpm減速機,326rpm減速機,371rpm減速機,438rpm減速機,484rpm減速機,551rpm減速機,583rpm減速機,686rpm減速機,753rpm減速機,870rpm減速機,1000rpm減速機。（以上rpm/min數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

RX67減速機輸出扭矩：

43Nm減速箱,75Nm減速箱,80Nm減速箱,82Nm減速箱,87Nm減速箱,100Nm減速箱,104Nm減速箱,106Nm減速箱,114Nm減速箱,118Nm減速箱,123Nm減速箱,126Nm減速箱,134Nm減速箱。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

RX系列減速機RX67電機型號：RX67DV63S4,RX67DV71S4,RX67DV80S4,RX67DV90S4,RX67DV100S4,RX67DV112S4,RX67DV132S4,RX67DT63S4,RX67DT71S4,RX67DT80S4,RX67DT90S4,RX67DT100S4,RX67DT112S4,RX67DT132S4,RX67DRS63S4,RX67DRS71S4,RX67DRS80S4,RX67DRS90S4,RX67DRS100S4,RX67DRS112S4,RX67DRS132S4,RX67DRE63S4,RX67DRE71S4,RX67DRE80S4,RX67DRE90S4,RX67DRE100S4,RX67DRE112S4,RX67DRE132S4,RX67Y63S4,RX67Y71S4,RX67Y80S4,RX67Y90S4,RX67Y100S4,RX67Y112S4,RX67Y132S4,RX67DV63M4,RX67DV71M4,RX67DV80M4,RX67DV90M4,RX67DV100M4,RX67DV112M4,RX67DV132M4,RX67DT63M4,RX67DT71M4,RX67DT80M4,RX67DT90M4,RX67DT100M4,RX67DT112M4,RX67DT132M4,RX67DRS63M4,RX67DRS71M4,RX67DRS80M4,RX67DRS90M4,RX67DRS100M4,RX67DRS112M4,RX67DRS132M4,RX67DRE63M4,RX67DRE71M4,RX67DRE80M4,RX67DRE90M4,RX67DRE100M4,RX67DRE112M4,RX67DRE132M4,RX67Y63M4,RX67Y71M4,RX67Y80M4,RX67Y90M4,RX67Y100M4,RX67Y112M4,RX67Y132M4,RX67DV63L4,RX67DV71L4,RX67DV80L4,RX67DV90L4,RX67DV100L4,RX67DV112L4,RX67DV132L4,RX67DT63L4,RX67DT71L4,RX67DT80L4,RX67DT90L4,RX67DT100L4,RX67DT112L4,RX67DT132L4,RX67DRS63L4,RX67DRS71L4,RX67DRS80L4,RX67DRS90L4,RX67DRS100L4,RX67DRS112L4,RX67DRS132L4,RX67DRE63L4,RX67DRE71L4,RX67DRE80L4,RX67DRE90L4,RX67DRE100L4,RX67DRE112L4,RX67DRE132L4,RX67Y63L4,RX67Y71L4,RX67Y80L4,RX67Y90L4,RX67Y100L4,RX67Y112L4,RX67Y132L4,

同軸減速電機RX67減速機配各種電機實物圖：

RX67減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://ammunjo.com/product/list-rxxiliejiansuji-cn.html

推薦類似型號：減速機R67
