R137齒輪減速馬達功率：

R137Y5.5KW,R137Y7.5KW,R137Y11KW,R137Y15KW,R137Y18.5KW,R137Y22KW,R137Y30KW,R137Y37KW,R137Y45KW,R137Y55KW（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

R137減速機減速比：R系列減速機

5.15比減速器,6.38比減速器,7.59比減速器,8.71比減速器,10.79比減速器,12.83比減速器,14.51比減速器,16.8比減速器,19.04比減速器,22比減速器,24.12比減速器,27.83比減速器,29.57比減速器,32.91比減速器,37.65比減速器,44.39比減速器,50.86比減速器,59.17比減速器,65.2比減速器,73.49比減速器,80.91比減速器,88.7比減速器,103.72比減速器,113.72比減速器,128.18比減速器,141.12比減速器,156.31比減速器,174.4比減速器,188.45比減速器,222.6比減速器

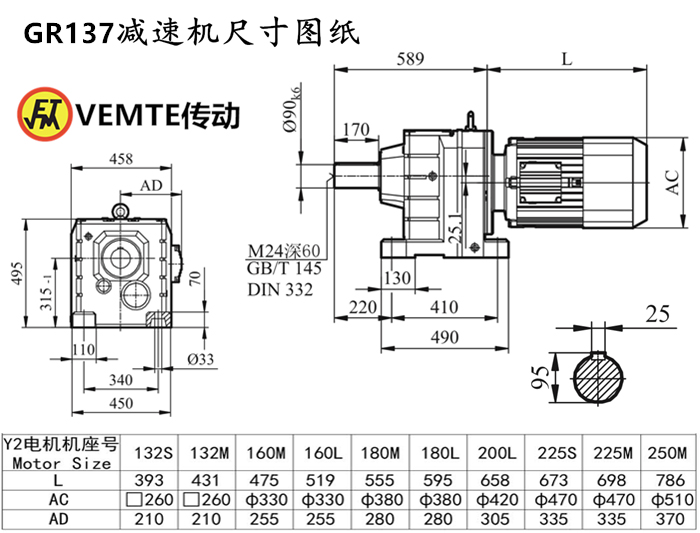

R137減速機安裝尺寸：輸出軸Φ90+鍵5（可定做），高495*寬450*長589（帶輸出軸）

R137同軸減速機輸出轉數：

6.3轉減速機,7.4轉減速機,8轉減速機,9轉減速機,9.9轉減速機,11轉減速機,12轉減速機,14轉減速機,16轉減速機,17轉減速機,19轉減速機,21轉減速機,24轉減速機,28轉減速機,32轉減速機,37轉減速機,43轉減速機,47轉減速機,50轉減速機,58轉減速機,64轉減速機,74轉減速機,83轉減速機,96轉減速機,109轉減速機,130轉減速機,161轉減速機,184轉減速機,219轉減速機,272轉減速機。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

R137減速機輸出扭矩：

減速箱4600N.m,減速箱5110N.m,減速箱7680N.m,減速箱7780N.m,減速箱7840N.m,減速箱8000N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

R系列斜齒輪減速機R137型號:

R137DV112S4,R137DV132S4,R137DV160S4,R137DV180S4,R137DV200S4,R137DV225S4,R137DV250S4,R137DT112S4,R137DT132S4,R137DT160S4,R137DT180S4,R137DT200S4,R137DT225S4,R137DT250S4,R137DRS112S4,R137DRS132S4,R137DRS160S4,R137DRS180S4,R137DRS200S4,R137DRS225S4,R137DRS250S4,R137DRE112S4,R137DRE132S4,R137DRE160S4,R137DRE180S4,R137DRE200S4,R137DRE225S4,R137DRE250S4,R137Y112S4,R137Y132S4,R137Y160S4,R137Y180S4,R137Y200S4,R137Y225S4,R137Y250S4,R137DV112M4,R137DV132M4,R137DV160M4,R137DV180M4,R137DV200M4,R137DV225M4,R137DV250M4,R137DT112M4,R137DT132M4,R137DT160M4,R137DT180M4,R137DT200M4,R137DT225M4,R137DT250M4,R137DRS112M4,R137DRS132M4,R137DRS160M4,R137DRS180M4,R137DRS200M4,R137DRS225M4,R137DRS250M4,R137DRE112M4,R137DRE132M4,R137DRE160M4,R137DRE180M4,R137DRE200M4,R137DRE225M4,R137DRE250M4,R137Y112M4,R137Y132M4,R137Y160M4,R137Y180M4,R137Y200M4,R137Y225M4,R137Y250M4,R137DV112L4,R137DV132L4,R137DV160L4,R137DV180L4,R137DV200L4,R137DV225L4,R137DV250L4,R137DT112L4,R137DT132L4,R137DT160L4,R137DT180L4,R137DT200L4,R137DT225L4,R137DT250L4,R137DRS112L4,R137DRS132L4,R137DRS160L4,R137DRS180L4,R137DRS200L4,R137DRS225L4,R137DRS250L4,R137DRE112L4,R137DRE132L4,R137DRE160L4,R137DRE180L4,R137DRE200L4,R137DRE225L4,R137DRE250L4,R137Y112L4,R137Y132L4,R137Y160L4,R137Y180L4,R137Y200L4,R137Y225L4,R137Y250L4,

R137減速機配各種電機的實物圖：

R137減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約

推薦類似型號：減速機RF137
