R107齒輪減速電機功率：

R107Y1.5KW,R107Y2.2KW,R107Y3KW,R107Y4KW,R107Y5.5KW,R107Y7.5KW,R107Y11KW,R107Y15KW,R107Y18.5KW,R107Y22KW,R107Y30KW,R107Y37KW,R107Y45KW（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

R107減速機減速比：同軸減速機

4.92比減速器,5.82比減速器,6.66比減速器,7.86比減速器,8.56比減速器,10.13比減速器,11.59比減速器,13.66比減速器,15.65比減速器,18.21比減速器,20.07比減速器,22.62比減速器,24.9比減速器,27.58比減速器,29.49比減速器,30.77比減速器,35.26比減速器,40.37比減速器,47.63比減速器,52.68比減速器,59.41比減速器,65.6比減速器,72.88比減速器,78.57比減速器,92.7比減速器,102.53比減速器,115.63比減速器,127.68比減速器,141.83比減速器,158.68比減速器,172.34比減速器,203.16比減速器,229.95比減速器,251.15比減速器

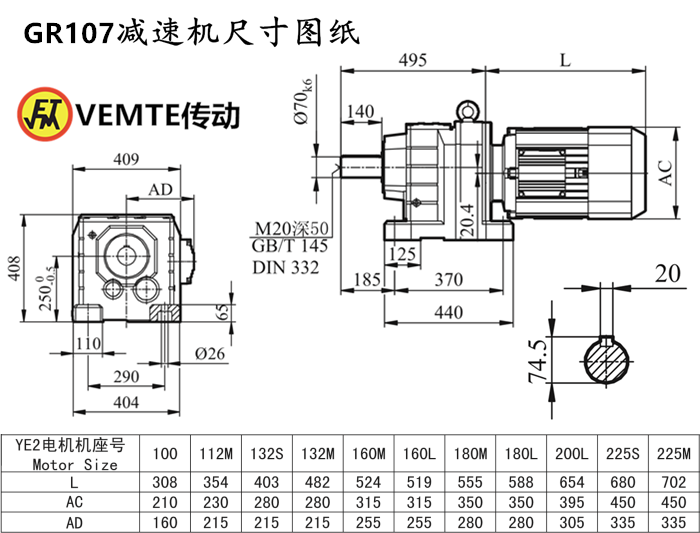

R107減速機安裝尺寸：輸出軸Φ70+鍵4.5（可定做），高408*寬404*長495（帶輸出軸）

R107同軸減速器輸出轉數：

5.6轉減速機,6.1轉減速機,6.9轉減速機,8.1轉減速機,8.8轉減速機,9.9轉減速機,11轉減速機,12轉減速機,14轉減速機,15轉減速機,18轉減速機,19轉減速機,21轉減速機,24轉減速機,27轉減速機,29轉減速機,35轉減速機,40轉減速機,45轉減速機,47轉減速機,51轉減速機,56轉減速機,62轉減速機,70轉減速機,77轉減速機,89轉減速機,102轉減速機,121轉減速機,138轉減速機,164轉減速機,178轉減速機,210轉減速機,241轉減速機,285轉減速機。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

R107減速機輸出扭矩：

減速箱4300N.m,減速箱2970N.m,減速箱2900N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

GR系列減速機GR107型號:

R107DV90S4,R107DV100S4,R107DV112S4,R107DV132S4,R107DV160S4,R107DV180S4,R107DV200S4,R107DV225S4,R107DT90S4,R107DT100S4,R107DT112S4,R107DT132S4,R107DT160S4,R107DT180S4,R107DT200S4,R107DT225S4,R107DRS90S4,R107DRS100S4,R107DRS112S4,R107DRS132S4,R107DRS160S4,R107DRS180S4,R107DRS200S4,R107DRS225S4,R107DRE90S4,R107DRE100S4,R107DRE112S4,R107DRE132S4,R107DRE160S4,R107DRE180S4,R107DRE200S4,R107DRE225S4,R107Y90S4,R107Y100S4,R107Y112S4,R107Y132S4,R107Y160S4,R107Y180S4,R107Y200S4,R107Y225S4,R107DV90M4,R107DV100M4,R107DV112M4,R107DV132M4,R107DV160M4,R107DV180M4,R107DV200M4,R107DV225M4,R107DT90M4,R107DT100M4,R107DT112M4,R107DT132M4,R107DT160M4,R107DT180M4,R107DT200M4,R107DT225M4,R107DRS90M4,R107DRS100M4,R107DRS112M4,R107DRS132M4,R107DRS160M4,R107DRS180M4,R107DRS200M4,R107DRS225M4,R107DRE90M4,R107DRE100M4,R107DRE112M4,R107DRE132M4,R107DRE160M4,R107DRE180M4,R107DRE200M4,R107DRE225M4,R107Y90M4,R107Y100M4,R107Y112M4,R107Y132M4,R107Y160M4,R107Y180M4,R107Y200M4,R107Y225M4,R107DV90L4,R107DV100L4,R107DV112L4,R107DV132L4,R107DV160L4,R107DV180L4,R107DV200L4,R107DV225L4,R107DT90L4,R107DT100L4,R107DT112L4,R107DT132L4,R107DT160L4,R107DT180L4,R107DT200L4,R107DT225L4,R107DRS90L4,R107DRS100L4,R107DRS112L4,R107DRS132L4,R107DRS160L4,R107DRS180L4,R107DRS200L4,R107DRS225L4,R107DRE90L4,R107DRE100L4,R107DRE112L4,R107DRE132L4,R107DRE160L4,R107DRE180L4,R107DRE200L4,R107DRE225L4,R107Y90L4,R107Y100L4,R107Y112L4,R107Y132L4,R107Y160L4,R107Y180L4,R107Y200L4,R107Y225L4,

R107減速機配各種電機的實物圖：

R107減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約

推薦類似型號：減速機RF107
