KF97減速機電機功率：KF系列減速機KF97Y0.18KW,KF97Y0.25KW,KF97Y0.37KW,KF97Y0.55KW,KF97Y0.75KW,KF97Y1.1KW,KF97Y1.5KW,KF97Y2.2KW,KF97Y3KW,KF97Y4KW,KF97Y5.5KW,KF97Y7.5KW,KF97Y11KW,KF97Y15KW,KF97Y18.5KW,KF97Y22KW,KF97Y30KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

KF97錐齒輪減速機減速比：

176.05比減速機,153.21比減速機,140.28比減速機,123.93比減速機,105.13比減速機,96.08比減速機,86.52比減速機,77.89比減速機,70.54比減速機,62.55比減速機,47.93比減速機,41.87比減速機,38.3比減速機,34.23比減速機,30.82比減速機,27.91比減速機,24.75比減速機,22.37比減速機,18.96比減速機,16.56比減速機,13.85比減速機,11.99比減速機,10.41比減速機,8.71比減速機,7.54比減速機

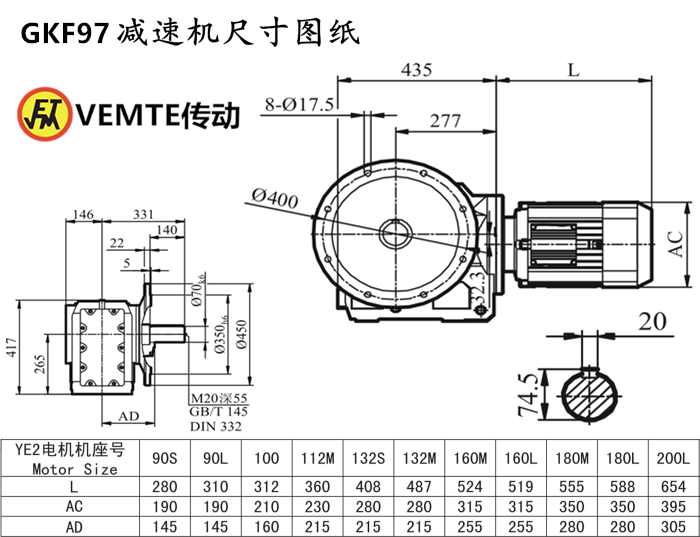

KF97減速機安裝尺寸：輸出軸+鍵Φ74.5（可定做），高417*寬447（帶輸出軸）*長435

KF97轉角減速器輸出轉數：

8轉減速箱,9.1轉減速箱,10轉減速箱,11轉減速箱,13轉減速箱,14轉減速箱,16轉減速箱,18轉減速箱,20轉減速箱,22轉減速箱,25轉減速箱,29轉減速箱,33轉減速箱,37轉減速箱,41轉減速箱,45轉減速箱,50轉減速箱,57轉減速箱,63轉減速箱,74轉減速箱,85轉減速箱,101轉減速箱,117轉減速箱,134轉減速箱,161轉減速箱,186轉減速箱。（以上rpm數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

KF97減速機輸出扭矩：

4300Nm減速器,3890Nm減速器,2870Nm減速器,2660Nm減速器,2400Nm減速器。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大,或者兩個減速機組合使用）

KF97減速機電機型號：KF97DV90S4,KF97DV100S4,KF97DV112S4,KF97DV132S4,KF97DV160S4,KF97DV180S4,KF97DV200S4,KF97DT90S4,KF97DT100S4,KF97DT112S4,KF97DT132S4,KF97DT160S4,KF97DT180S4,KF97DT200S4,KF97DRS90S4,KF97DRS100S4,KF97DRS112S4,KF97DRS132S4,KF97DRS160S4,KF97DRS180S4,KF97DRS200S4,KF97DRE90S4,KF97DRE100S4,KF97DRE112S4,KF97DRE132S4,KF97DRE160S4,KF97DRE180S4,KF97DRE200S4,KF97Y90S4,KF97Y100S4,KF97Y112S4,KF97Y132S4,KF97Y160S4,KF97Y180S4,KF97Y200S4,KF97DV90M4,KF97DV100M4,KF97DV112M4,KF97DV132M4,KF97DV160M4,KF97DV180M4,KF97DV200M4,KF97DT90M4,KF97DT100M4,KF97DT112M4,KF97DT132M4,KF97DT160M4,KF97DT180M4,KF97DT200M4,KF97DRS90M4,KF97DRS100M4,KF97DRS112M4,KF97DRS132M4,KF97DRS160M4,KF97DRS180M4,KF97DRS200M4,KF97DRE90M4,KF97DRE100M4,KF97DRE112M4,KF97DRE132M4,KF97DRE160M4,KF97DRE180M4,KF97DRE200M4,KF97Y90M4,KF97Y100M4,KF97Y112M4,KF97Y132M4,KF97Y160M4,KF97Y180M4,KF97Y200M4,KF97DV90L4,KF97DV100L4,KF97DV112L4,KF97DV132L4,KF97DV160L4,KF97DV180L4,KF97DV200L4,KF97DT90L4,KF97DT100L4,KF97DT112L4,KF97DT132L4,KF97DT160L4,KF97DT180L4,KF97DT200L4,KF97DRS90L4,KF97DRS100L4,KF97DRS112L4,KF97DRS132L4,KF97DRS160L4,KF97DRS180L4,KF97DRS200L4,KF97DRE90L4,KF97DRE100L4,KF97DRE112L4,KF97DRE132L4,KF97DRE160L4,KF97DRE180L4,KF97DRE200L4,KF97Y90L4,KF97Y100L4,KF97Y112L4,KF97Y132L4,KF97Y160L4,KF97Y180L4,KF97Y200L4

KF97伺服直流減速機搭配各種電機實物圖：可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間

KF97減速機工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://ammunjo.com/product/list-kfxiliejiansuji-cn.html

推薦類似型號：減速機KA97
