KF87減速機電機功率：KF87Y0.18KW,KF87Y0.25KW,KF87Y0.37KW,KF87Y0.55KW,KF87Y0.75KW,KF87Y1.1KW,KF87Y1.5KW,KF87Y2.2KW,KF87Y3KW,KF87Y4KW,KF87Y5.5KW,KF87Y7.5KW,KF87Y11KW,KF87Y15KW,KF87Y18.5KW,KF87Y22KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

KF系列減速機KF87減速比：

197.37比減速機,174.19比減速機,164.34比減速機,147.32比減速機,126.91比減速機,115.82比減速機,102.71比減速機,86.34比減速機,79.34比減速機,70.46比減速機,63比減速機,56.64比減速機,49.16比減速機,44.02比減速機,36.52比減速機,31.39比減速機,27.88比減速機,24.92比減速機,22.41比減速機,19.45比減速機,17.42比減速機,16比減速機,14.45比減速機,12.56比減速機,11.17比減速機,10比減速機,8.29比減速機,7.21比減速機

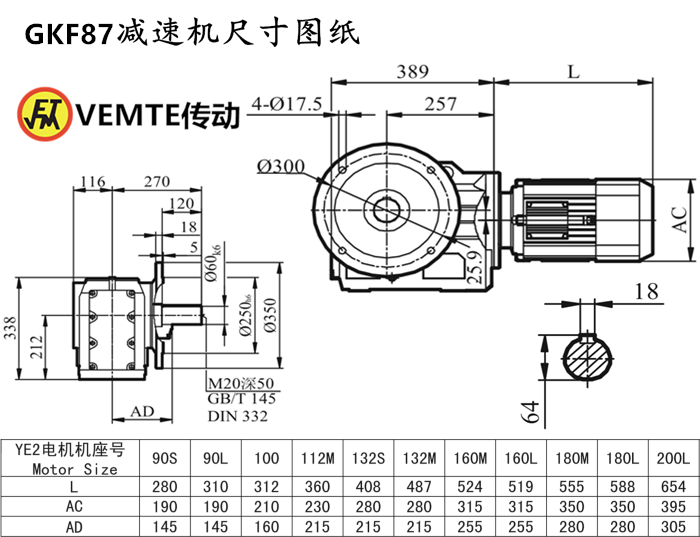

KF87減速機安裝尺寸：輸出軸+鍵Φ64（可定做），高340*寬386（帶輸出軸）*長389

KF87傘齒輪減速器輸出轉數：

7.1轉減速箱,8轉減速箱,8.5轉減速箱,9.5轉減速箱,11轉減速箱,12轉減速箱,14轉減速箱,16轉減速箱,18轉減速箱,20轉減速箱,22轉減速箱,25轉減速箱,28轉減速箱,32轉減速箱,38轉減速箱,45轉減速箱,50轉減速箱,56轉減速箱,62轉減速箱,72轉減速箱,80轉減速箱,88轉減速箱,97轉減速箱,111轉減速箱,125轉減速箱,140轉減速箱,169轉減速箱,194轉減速箱。（以上rpm數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

KF87減速機輸出扭矩：

1300Nm減速器,1400Nm減速器,1500Nm減速器,1800Nm減速器,2000Nm減速器,2100Nm減速器,2200Nm減速器,2300Nm減速器,2500Nm減速器,2600Nm減速器,2700Nm減速器。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大,或者兩個減速機組合使用）

KF87直角減速電機型號：KF87DV71S4,KF87DV80S4,KF87DV90S4,KF87DV100S4,KF87DV112S4,KF87DV132S4,KF87DV160S4,KF87DV180S4,KF87DV200S4,KF87DT71S4,KF87DT80S4,KF87DT90S4,KF87DT100S4,KF87DT112S4,KF87DT132S4,KF87DT160S4,KF87DT180S4,KF87DT200S4,KF87DRS71S4,KF87DRS80S4,KF87DRS90S4,KF87DRS100S4,KF87DRS112S4,KF87DRS132S4,KF87DRS160S4,KF87DRS180S4,KF87DRS200S4,KF87DRE71S4,KF87DRE80S4,KF87DRE90S4,KF87DRE100S4,KF87DRE112S4,KF87DRE132S4,KF87DRE160S4,KF87DRE180S4,KF87DRE200S4,KF87Y71S4,KF87Y80S4,KF87Y90S4,KF87Y100S4,KF87Y112S4,KF87Y132S4,KF87Y160S4,KF87Y180S4,KF87Y200S4,KF87DV71M4,KF87DV80M4,KF87DV90M4,KF87DV100M4,KF87DV112M4,KF87DV132M4,KF87DV160M4,KF87DV180M4,KF87DV200M4,KF87DT71M4,KF87DT80M4,KF87DT90M4,KF87DT100M4,KF87DT112M4,KF87DT132M4,KF87DT160M4,KF87DT180M4,KF87DT200M4,KF87DRS71M4,KF87DRS80M4,KF87DRS90M4,KF87DRS100M4,KF87DRS112M4,KF87DRS132M4,KF87DRS160M4,KF87DRS180M4,KF87DRS200M4,KF87DRE71M4,KF87DRE80M4,KF87DRE90M4,KF87DRE100M4,KF87DRE112M4,KF87DRE132M4,KF87DRE160M4,KF87DRE180M4,KF87DRE200M4,KF87Y71M4,KF87Y80M4,KF87Y90M4,KF87Y100M4,KF87Y112M4,KF87Y132M4,KF87Y160M4,KF87Y180M4,KF87Y200M4,KF87DV71L4,KF87DV80L4,KF87DV90L4,KF87DV100L4,KF87DV112L4,KF87DV132L4,KF87DV160L4,KF87DV180L4,KF87DV200L4,KF87DT71L4,KF87DT80L4,KF87DT90L4,KF87DT100L4,KF87DT112L4,KF87DT132L4,KF87DT160L4,KF87DT180L4,KF87DT200L4,KF87DRS71L4,KF87DRS80L4,KF87DRS90L4,KF87DRS100L4,KF87DRS112L4,KF87DRS132L4,KF87DRS160L4,KF87DRS180L4,KF87DRS200L4,KF87DRE71L4,KF87DRE80L4,KF87DRE90L4,KF87DRE100L4,KF87DRE112L4,KF87DRE132L4,KF87DRE160L4,KF87DRE180L4,KF87DRE200L4,KF87Y71L4,KF87Y80L4,KF87Y90L4,KF87Y100L4,KF87Y112L4,KF87Y132L4,KF87Y160L4,KF87Y180L4,KF87Y200L4

GKF系列減速機GKF87減速機搭配各種電機實物圖：可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間

KF87減速機工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://ammunjo.com/product/list-kfxiliejiansuji-cn.html

推薦類似型號：減速機KA87
