KAF87減速機電機功率：KAF系列減速電機KAF87Y0.18KW,KAF87Y0.25KW,KAF87Y0.37KW,KAF87Y0.55KW,KAF87Y0.75KW,KAF87Y1.1KW,KAF87Y1.5KW,KAF87Y2.2KW,KAF87Y3KW,KAF87Y4KW,KAF87Y5.5KW,KAF87Y7.5KW,KAF87Y11KW,KAF87Y15KW,KAF87Y18.5KW,KAF87Y22KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

KAF87傘齒輪減速機減速比：

減速箱1:197.37,減速箱1:174.19,減速箱1:164.34,減速箱1:147.32,減速箱1:126.91,減速箱1:115.82,減速箱1:102.71,減速箱1:86.34,減速箱1:79.34,減速箱1:70.46,減速箱1:63,減速箱1:56.64,減速箱1:49.16,減速箱1:44.02,減速箱1:36.52,減速箱1:31.39,減速箱1:27.88,減速箱1:24.92,減速箱1:22.41,減速箱1:19.45,減速箱1:17.42,減速箱1:16,減速箱1:14.45,減速箱1:12.56,減速箱1:11.17,減速箱1:10,減速箱1:8.29,減速箱1:7.21

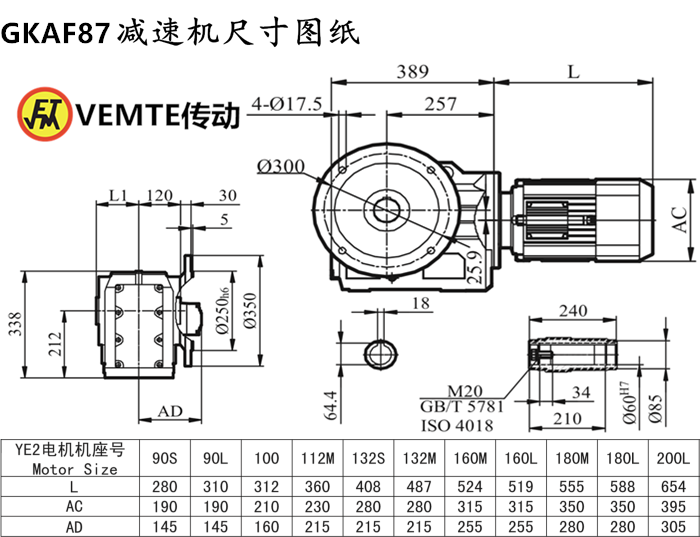

KAF87減速機安裝尺寸：輸出孔+鍵Φ64.4（可定做），高338*寬266（帶輸出法蘭）*長390

KAF87直角減速電機輸出轉數：

7.1轉減速器,8轉減速器,8.5轉減速器,9.5轉減速器,11轉減速器,12轉減速器,14轉減速器,16轉減速器,18轉減速器,20轉減速器,22轉減速器,25轉減速器,28轉減速器,32轉減速器,38轉減速器,45轉減速器,50轉減速器,56轉減速器,62轉減速器,72轉減速器,80轉減速器,88轉減速器,97轉減速器,111轉減速器,125轉減速器,140轉減速器,169轉減速器,194轉減速器。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

KAF87減速機輸出扭矩：

1300N.m減速機,1400N.m減速機,1500N.m減速機,1800N.m減速機,2000N.m減速機,2100N.m減速機,2200N.m減速機,2300N.m減速機,2500N.m減速機,2600N.m減速機,2700N.m減速機。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大,或者兩個減速機組合使用）

伺服減速機KAF87減速機電機型號：KAF87DV71S4,KAF87DV80S4,KAF87DV90S4,KAF87DV100S4,KAF87DV112S4,KAF87DV132S4,KAF87DV160S4,KAF87DV180S4,KAF87DV200S4,KAF87DT71S4,KAF87DT80S4,KAF87DT90S4,KAF87DT100S4,KAF87DT112S4,KAF87DT132S4,KAF87DT160S4,KAF87DT180S4,KAF87DT200S4,KAF87DRS71S4,KAF87DRS80S4,KAF87DRS90S4,KAF87DRS100S4,KAF87DRS112S4,KAF87DRS132S4,KAF87DRS160S4,KAF87DRS180S4,KAF87DRS200S4,KAF87DRE71S4,KAF87DRE80S4,KAF87DRE90S4,KAF87DRE100S4,KAF87DRE112S4,KAF87DRE132S4,KAF87DRE160S4,KAF87DRE180S4,KAF87DRE200S4,KAF87Y71S4,KAF87Y80S4,KAF87Y90S4,KAF87Y100S4,KAF87Y112S4,KAF87Y132S4,KAF87Y160S4,KAF87Y180S4,KAF87Y200S4,KAF87DV71M4,KAF87DV80M4,KAF87DV90M4,KAF87DV100M4,KAF87DV112M4,KAF87DV132M4,KAF87DV160M4,KAF87DV180M4,KAF87DV200M4,KAF87DT71M4,KAF87DT80M4,KAF87DT90M4,KAF87DT100M4,KAF87DT112M4,KAF87DT132M4,KAF87DT160M4,KAF87DT180M4,KAF87DT200M4,KAF87DRS71M4,KAF87DRS80M4,KAF87DRS90M4,KAF87DRS100M4,KAF87DRS112M4,KAF87DRS132M4,KAF87DRS160M4,KAF87DRS180M4,KAF87DRS200M4,KAF87DRE71M4,KAF87DRE80M4,KAF87DRE90M4,KAF87DRE100M4,KAF87DRE112M4,KAF87DRE132M4,KAF87DRE160M4,KAF87DRE180M4,KAF87DRE200M4,KAF87Y71M4,KAF87Y80M4,KAF87Y90M4,KAF87Y100M4,KAF87Y112M4,KAF87Y132M4,KAF87Y160M4,KAF87Y180M4,KAF87Y200M4,KAF87DV71L4,KAF87DV80L4,KAF87DV90L4,KAF87DV100L4,KAF87DV112L4,KAF87DV132L4,KAF87DV160L4,KAF87DV180L4,KAF87DV200L4,KAF87DT71L4,KAF87DT80L4,KAF87DT90L4,KAF87DT100L4,KAF87DT112L4,KAF87DT132L4,KAF87DT160L4,KAF87DT180L4,KAF87DT200L4,KAF87DRS71L4,KAF87DRS80L4,KAF87DRS90L4,KAF87DRS100L4,KAF87DRS112L4,KAF87DRS132L4,KAF87DRS160L4,KAF87DRS180L4,KAF87DRS200L4,KAF87DRE71L4,KAF87DRE80L4,KAF87DRE90L4,KAF87DRE100L4,KAF87DRE112L4,KAF87DRE132L4,KAF87DRE160L4,KAF87DRE180L4,KAF87DRE200L4,KAF87Y71L4,KAF87Y80L4,KAF87Y90L4,KAF87Y100L4,KAF87Y112L4,KAF87Y132L4,KAF87Y160L4,KAF87Y180L4,KAF87Y200L4

KAF87減速機配各種電機實物圖：可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間

KAF87減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://ammunjo.com/product/list-kafxiliejiansuji-cn.html

推薦類似型號：減速機K87
