蝸輪蝸桿減速機
網站首頁 > VEMT減速機 > 斜齒輪蝸輪蝸桿減速機 > S系列減速電機

減速機S87詳細信息

prevnext

減速機S87

訂購熱線:15818497138
  1. 詳細信息

減速機S87電機功率:S87Y0.12KW,S87Y0.18KW,S87Y0.25KW,S87Y0.37KW,S87Y0.55KW,S87Y0.75KW,S87Y1.1KW,S87Y1.5KW,S87Y2.2KW,S87Y3KW,S87Y4KW,S87Y5.5KW,S87Y7.5KW,S87Y11KW,S87Y15KW。(可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機)。

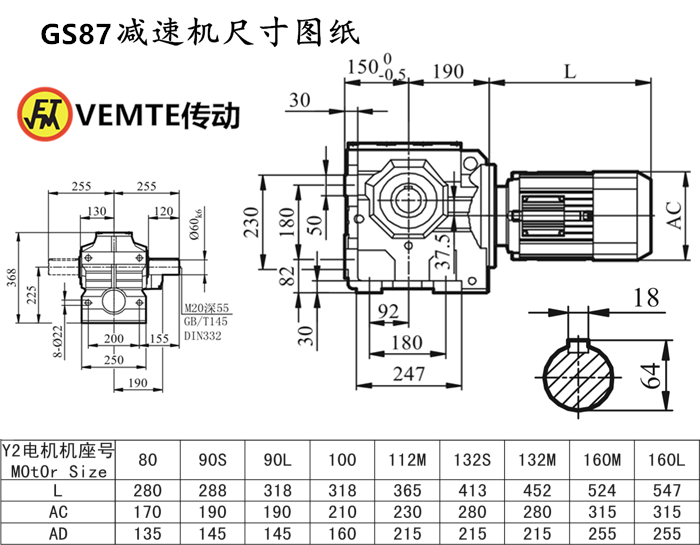

減速機S87安裝尺寸:輸出軸+鍵Φ64(可定做),高368*寬390(帶輸出軸)*長340


自鎖減速機S87減速比:減速器1:288,減速器1:258.18,減速器1:222.4,減速器1:202.96,減速器1:180,減速器1:151.3,減速器1:139.05,減速器1:123.48,減速器1:110.4,減速器1:99.26,減速器1:91.2,減速器1:86.15,減速器1:81.76,減速器1:77.14,減速器1:70.43,減速器1:64.27,減速器1:64,減速器1:57,減速器1:47.91,減速器1:44.03,減速器1:39.1,減速器1:34.96,減速器1:31.43,減速器1:27.28,減速器1:25.5,減速器1:24.43,減速器1:21.43,減速器1:20.27,減速器1:19.7,減速器1:17.49,減速器1:15.64,減速器1:14.06,減速器1:12.21,減速器1:10.93,減速器1:9.07,減速器1:7.8

減速機S87輸出轉數:4.9rpm/min減速機,5.4rpm/min減速機,6.3rpm/min減速機,6.9rpm/min減速機,7.8rpm/min減速機,9.3rpm/min減速機,10rpm/min減速機,11rpm/min減速機,14rpm/min減速機,15rpm/min減速機,16rpm/min減速機,17rpm/min減速機,18rpm/min減速機,20rpm/min減速機,22rpm/min減速機,25rpm/min減速機,29rpm/min減速機,32rpm/min減速機,36rpm/min減速機,40rpm/min減速機,45rpm/min減速機,51rpm/min減速機,55rpm/min減速機,57rpm/min減速機,65rpm/min減速機,69rpm/min減速機,71rpm/min減速機,80rpm/min減速機,90rpm/min減速機,100rpm/min減速機,115rpm/min減速機,128rpm/min減速機,154rpm/min減速機,178rpm/min減速機。(以上rpm/min數均為四級電機算出的,可用兩級電機,六級電機計算,也可以用變頻電機調速)


減速機S87輸出扭矩:減速箱2280N.m減速箱,2260N.m減速箱,2210N.m減速箱,2150N.m減速箱,2100N.m減速箱,2060N.m減速箱,2000N.m減速箱,1960N.m減速箱,1510N.m減速箱,1880N.m減速箱,1600N.m減速箱,1820N.m減速箱,1700N.m減速箱,1240N.m減速箱,1140N.m減速箱,1010N.m渦輪減速箱。(以上扭矩均為四級電機得出扭矩,需要比上面更大的扭矩,可把電機功率加大,減速機型號加大,或者兩個減速機組合使用)

減速機S87電機型號:S87DV71S4,S87DV80S4,S87DV90S4,S87DV100S4,S87DV112S4,S87DV132S4,S87DV160S4,S87DT71S4,S87DT80S4,S87DT90S4,S87DT100S4,S87DT112S4,S87DT132S4,S87DT160S4,S87DRE71S4,S87DRE80S4,S87DRE90S4,S87DRE100S4,S87DRE112S4,S87DRE132S4,S87DRE160S4,S87DRS71S4,S87DRS80S4,S87DRS90S4,S87DRS100S4,S87DRS112S4,S87DRS132S4,S87DRS160S4,S87Y71S4,S87Y80S4,S87Y90S4,S87Y100S4,S87Y112S4,S87Y132S4,S87Y160S4,S87DV71M4,S87DV80M4,S87DV90M4,S87DV100M4,S87DV112M4,S87DV132M4,S87DV160M4,S87DT71M4,S87DT80M4,S87DT90M4,S87DT100M4,S87DT112M4,S87DT132M4,S87DT160M4,S87DRE71M4,S87DRE80M4,S87DRE90M4,S87DRE100M4,S87DRE112M4,S87DRE132M4,S87DRE160M4,S87DRS71M4,S87DRS80M4,S87DRS90M4,S87DRS100M4,S87DRS112M4,S87DRS132M4,S87DRS160M4,S87Y71M4,S87Y80M4,S87Y90M4,S87Y100M4,S87Y112M4,S87Y132M4,S87Y160M4,S87DV71L4,S87DV80L4,S87DV90L4,S87DV100L4,S87DV112L4,S87DV132L4,S87DV160L4,S87DT71L4,S87DT80L4,S87DT90L4,S87DT100L4,S87DT112L4,S87DT132L4,S87DT160L4,S87DRE71L4,S87DRE80L4,S87DRE90L4,S87DRE100L4,S87DRE112L4,S87DRE132L4,S87DRE160L4,S87DRS71L4,S87DRS80L4,S87DRS90L4,S87DRS100L4,S87DRS112L4,S87DRS132L4,S87DRS160L4,S87Y71L4,S87Y80L4,S87Y90L4,S87Y100L4,S87Y112L4,S87Y132L4,S87Y160L4

渦輪伺服減速器S87配各種電機的實物圖:


減速機S87生產工廠展示:看廠請聯系微信13826972124,獲取位置,需提前一天預約http://ammunjo.com/product/list-sxiliejiansuji-cn.html


推薦類似型號:SF87減速機

關鍵詞:S系列減速機_減速機與司服電機連接_GS型減速機_司服電機減速機_S系列斜齒輪蝸輪蝸桿減速機

S系列減速機型號:S37減速機,S47減速機,S57減速機,S67減速機,S77減速機,S87減速機,S97

S系列自鎖減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-22KW之間


如需工程師幫選型,請加微信13826972124,留言告知工程師參數要求


標簽:  S87減速電機 減速機S87 S87減速箱 S87減速機生產廠家 GS87型減速機

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
S87減速機三維圖紙下載3D 點擊下載
S系列減速機樣本 點擊下載
