減速機RF87電機功率：

RF87Y0.37KW,RF87Y0.55KW,RF87Y0.75KW,RF87Y1.1KW,RF87Y1.5KW,RF87Y2.2KW,RF87Y3KW,RF87Y4KW,RF87Y5.5KW,RF87Y7.5KW,RF87Y11KW,RF87Y15KW,RF87Y18.5KW,RF87Y22KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

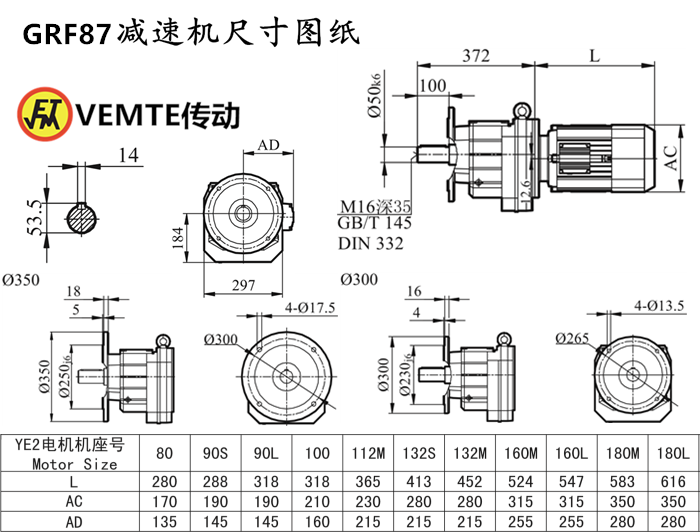

減速器R系列RF87安裝尺寸：輸出軸Φ50+鍵3.5（可定做），高295*寬297*長372（帶輸出軸）

同軸減速機RF87減速比：

1:5.3減速機,1:6.39減速機,1:7.13減速機,1:8.22減速機,1:9.14減速機,1:9.9減速機,1:11.93減速機,1:13.33減速機,1:15.35減速機,1:17.08減速機,1:19.1減速機,1:21.51減速機,1:23.4減速機,1:27.84減速機,1:27.88減速機,1:31.4減速機,1:32.66減速機,1:34.4減速機,1:36.84減速機,1:41.74減速機,1:47.58減速機,1:52.82減速機,1:60.35減速機,1:63.68減速機,1:72.57減速機,1:81.92減速機,1:93.38減速機,1:103.65減速機,1:118.43減速機,1:124.97減速機,1:142.41減速機,1:155.34減速機,1:181.77減速機,1:205.71減速機,1:216.54減速機,1:246.54減速機

減速箱RF87輸出轉數：

5.7rpm/min減速箱,6.5rpm/min減速箱,6.8rpm/min減速箱,7.7rpm/min減速箱,9rpm/min減速箱,9.8rpm/min減速箱,11rpm/min減速箱,12rpm/min減速箱,14rpm/min減速箱,15rpm/min減速箱,17rpm/min減速箱,19rpm/min減速箱,22rpm/min減速箱,23rpm/min減速箱,27rpm/min減速箱,29rpm/min減速箱,34rpm/min減速箱,38rpm/min減速箱,41rpm/min減速箱,43rpm/min減速箱,45rpm/min減速箱,50rpm/min減速箱,50rpm/min減速箱,60rpm/min減速箱,65rpm/min減速箱,73rpm/min減速箱,82rpm/min減速箱,91rpm/min減速箱,105rpm/min減速箱,117rpm/min減速箱,141rpm/min減速箱,153rpm/min減速箱,170rpm/min減速箱,196rpm/min減速箱,219rpm/min減速箱,264rpm/min減速箱。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

GRF齒輪減速機RF87輸出扭矩：

減速器1550Nm,減速器1440Nm,減速器1390Nm,減速器1340Nm,減速器1280Nm,減速器1230Nm,減速器1180Nm,減速器1210Nm,減速器1160Nm,減速器1070Nm,減速器1020Nm,減速器910Nm。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大,或者兩個減速機組合使用）

減速機RF87電機型號：RF87DV71S4,RF87DV80S4,RF87DV90S4,RF87DV100S4,RF87DV112S4,RF87DV132S4,RF87DV160S4,RF87DV180S4,RF87DV200S4,RF87DT71S4,RF87DT80S4,RF87DT90S4,RF87DT100S4,RF87DT112S4,RF87DT132S4,RF87DT160S4,RF87DT180S4,RF87DT200S4,RF87DRS71S4,RF87DRS80S4,RF87DRS90S4,RF87DRS100S4,RF87DRS112S4,RF87DRS132S4,RF87DRS160S4,RF87DRS180S4,RF87DRS200S4,RF87DRE71S4,RF87DRE80S4,RF87DRE90S4,RF87DRE100S4,RF87DRE112S4,RF87DRE132S4,RF87DRE160S4,RF87DRE180S4,RF87DRE200S4,RF87Y71S4,RF87Y80S4,RF87Y90S4,RF87Y100S4,RF87Y112S4,RF87Y132S4,RF87Y160S4,RF87Y180S4,RF87Y200S4,RF87DV71M4,RF87DV80M4,RF87DV90M4,RF87DV100M4,RF87DV112M4,RF87DV132M4,RF87DV160M4,RF87DV180M4,RF87DV200M4,RF87DT71M4,RF87DT80M4,RF87DT90M4,RF87DT100M4,RF87DT112M4,RF87DT132M4,RF87DT160M4,RF87DT180M4,RF87DT200M4,RF87DRS71M4,RF87DRS80M4,RF87DRS90M4,RF87DRS100M4,RF87DRS112M4,RF87DRS132M4,RF87DRS160M4,RF87DRS180M4,RF87DRS200M4,RF87DRE71M4,RF87DRE80M4,RF87DRE90M4,RF87DRE100M4,RF87DRE112M4,RF87DRE132M4,RF87DRE160M4,RF87DRE180M4,RF87DRE200M4,RF87Y71M4,RF87Y80M4,RF87Y90M4,RF87Y100M4,RF87Y112M4,RF87Y132M4,RF87Y160M4,RF87Y180M4,RF87Y200M4,RF87DV71L4,RF87DV80L4,RF87DV90L4,RF87DV100L4,RF87DV112L4,RF87DV132L4,RF87DV160L4,RF87DV180L4,RF87DV200L4,RF87DT71L4,RF87DT80L4,RF87DT90L4,RF87DT100L4,RF87DT112L4,RF87DT132L4,RF87DT160L4,RF87DT180L4,RF87DT200L4,RF87DRS71L4,RF87DRS80L4,RF87DRS90L4,RF87DRS100L4,RF87DRS112L4,RF87DRS132L4,RF87DRS160L4,RF87DRS180L4,RF87DRS200L4,RF87DRE71L4,RF87DRE80L4,RF87DRE90L4,RF87DRE100L4,RF87DRE112L4,RF87DRE132L4,RF87DRE160L4,RF87DRE180L4,RF87DRE200L4,RF87Y71L4,RF87Y80L4,RF87Y90L4,RF87Y100L4,RF87Y112L4,RF87Y132L4,RF87Y160L4,RF87Y180L4,RF87Y200L4,

減速機RF87配各種電機的實物圖：
