減速機RF77電機功率：齒輪減速機

RF77Y0.18KW,RF77Y0.25KW,RF77Y0.37KW,RF77Y0.55KW,RF77Y0.75KW,RF77Y1.1KW,RF77Y1.5KW,RF77Y2.2KW,RF77Y3KW,RF77Y4KW,RF77Y5.5KW,RF77Y7.5KW,RF77Y11KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

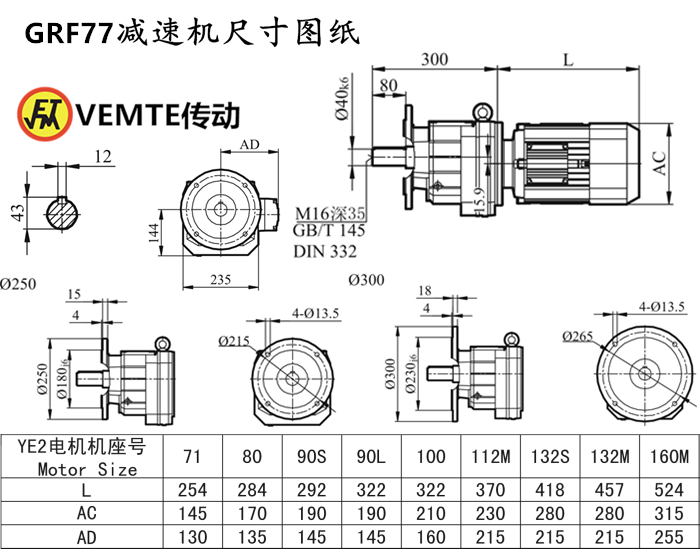

減速機RF77安裝尺寸：輸出軸Φ40+鍵3（可定做），高228*寬235*長300（帶輸出軸）

齒輪減速機RF77減速比：

1:5.31減速機,1:5.99減速機,1:6.79減速機,1:7.74減速機,1:8.59減速機,1:9.64減速機,1:10.88減速機,1:12.33減速機,1:14.05減速機,1:15.6減速機,1:17.82減速機,1:18.8減速機,1:21.43減速機,1:23.37減速機,1:25.23減速機,1:29減速機,1:33.47減速機,1:36.83減速機,1:43.26減速機,1:52.07減速機,1:54.81減速機,1:57.68減速機,1:65.77減速機,1:77.24減速機,1:81.8減速機,1:92.97減速機,1:102.99減速機

減速箱RF77輸出轉數：

7.2rpm/min減速箱,8.4rpm/min減速箱,9.6rpm/min減速箱,10rpm/min減速箱,12rpm/min減速箱,14rpm/min減速箱,15rpm/min減速箱,17rpm/min減速箱,18rpm/min減速箱,21rpm/min減速箱,24rpm/min減速箱,27rpm/min減速箱,31rpm/min減速箱,32rpm/min減速箱,38rpm/min減速箱,42rpm/min減速箱,48rpm/min減速箱,55rpm/min減速箱,60rpm/min減速箱,65rpm/min減速箱,74rpm/min減速箱,79rpm/min減速箱,90rpm/min減速箱,100rpm/min減速箱,114rpm/min減速箱,129rpm/min減速箱,145rpm/min減速箱,163rpm/min減速箱,181rpm/min減速箱,206rpm/min減速箱,234rpm/min減速箱,264rpm/min減速箱。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

斜齒輪減速器RF77輸出扭矩：

減速器510Nm,減速器540Nm,減速器580Nm,減速器610Nm,減速器630Nm,減速器690Nm,減速器720Nm,減速器740Nm,減速器780Nm,減速器780Nm,減速器820Nm。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大,或者兩個減速機組合使用）

減速機RF77電機型號：RF77DV71S4,RF77DV80S4,RF77DV90S4,RF77DV100S4,RF77DV112S4,RF77DV132S4,RF77DV160S4,RF77DT71S4,RF77DT80S4,RF77DT90S4,RF77DT100S4,RF77DT112S4,RF77DT132S4,RF77DT160S4,RF77DRS71S4,RF77DRS80S4,RF77DRS90S4,RF77DRS100S4,RF77DRS112S4,RF77DRS132S4,RF77DRS160S4,RF77DRE71S4,RF77DRE80S4,RF77DRE90S4,RF77DRE100S4,RF77DRE112S4,RF77DRE132S4,RF77DRE160S4,RF77Y71S4,RF77Y80S4,RF77Y90S4,RF77Y100S4,RF77Y112S4,RF77Y132S4,RF77Y160S4,RF77DV71M4,RF77DV80M4,RF77DV90M4,RF77DV100M4,RF77DV112M4,RF77DV132M4,RF77DV160M4,RF77DT71M4,RF77DT80M4,RF77DT90M4,RF77DT100M4,RF77DT112M4,RF77DT132M4,RF77DT160M4,RF77DRS71M4,RF77DRS80M4,RF77DRS90M4,RF77DRS100M4,RF77DRS112M4,RF77DRS132M4,RF77DRS160M4,RF77DRE71M4,RF77DRE80M4,RF77DRE90M4,RF77DRE100M4,RF77DRE112M4,RF77DRE132M4,RF77DRE160M4,RF77Y71M4,RF77Y80M4,RF77Y90M4,RF77Y100M4,RF77Y112M4,RF77Y132M4,RF77Y160M4,RF77DV71L4,RF77DV80L4,RF77DV90L4,RF77DV100L4,RF77DV112L4,RF77DV132L4,RF77DV160L4,RF77DT71L4,RF77DT80L4,RF77DT90L4,RF77DT100L4,RF77DT112L4,RF77DT132L4,RF77DT160L4,RF77DRS71L4,RF77DRS80L4,RF77DRS90L4,RF77DRS100L4,RF77DRS112L4,RF77DRS132L4,RF77DRS160L4,RF77DRE71L4,RF77DRE80L4,RF77DRE90L4,RF77DRE100L4,RF77DRE112L4,RF77DRE132L4,RF77DRE160L4,RF77Y71L4,RF77Y80L4,RF77Y90L4,RF77Y100L4,RF77Y112L4,RF77Y132L4,RF77Y160L4,

RF系列減速器RF77配各種電機的實物圖：

減速機RF77生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://ammunjo.com/product/list-rfxiliejiansuji-cn.html

推薦類似型號：RXF57減速機
