FF77減速機詳細信息

prevnext

FF77減速機

訂購熱線:15818497138
  1. 詳細信息

FF77減速機電機功率:

FF77Y0.12KW,FF77Y0.18KW,FF77Y0.25KW,FF77Y0.37KW,FF77Y0.55KW,FF77Y0.75KW,FF77Y1.1KW,FF77Y1.5KW,FF77Y2.2KW電機,FF77Y3KW電機,FF77Y4KW,FF77Y5.5KW,FF77Y7.5KW,FF77Y11KW。(可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機)。

FF77偏心減速機減速比:

1:281減速器,1:262減速器,1:225減速器,1:198減速器,1:188減速器,1:166減速器,1:142減速器,1:130減速器,1:114減速器,1:108減速器,1:94減速器,1:85減速器,1:75減速器,1:72減速器,1:66減速器,1:58減速器,1:55減速器,1:48減速器,1:43減速器,1:38減速器,1:33減速器,1:30減速器,1:25減速器,1:36減速器,1:31減速器,1:28減速器,1:25減速器,1:21減速器,1:19減速器,1:17減速器,1:15減速器,1:14減速器,1:12減速器,1:10減速器,1:9減速器,1:8減速器,1:7減速器,1:6減速器,1:5減速器,1:4減速器

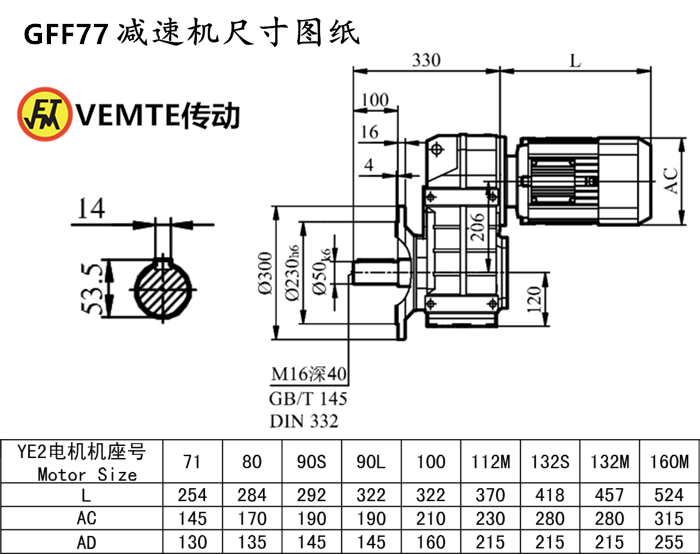

FF77減速機安裝尺寸:輸出軸Φ50+鍵3.5(可定做),高431*寬270*長330(帶輸出軸)平行軸斜齒輪減速機


FF77減速機輸出轉數:

減速機5rpm,減速機6rpm,減速機7rpm,減速機8rpm,減速機9rpm,減速機11rpm,減速機12rpm,減速機13rpm,減速機15rpm,減速機16rpm,減速機19rpm,減速機21rpm,減速機24rpm,減速機25rpm,減速機29rpm,減速機32rpm,減速機37rpm,減速機41rpm,減速機47rpm,減速機55rpm,減速機38rpm,減速機44rpm,減速機49rpm,減速機55rpm,減速機65rpm,減速機71rpm,減速機80rpm,減速機90rpm,減速機100rpm,減速機115rpm,減速機128rpm,減速機151rpm,減速機169rpm,減速機189rpm,減速機211rpm,減速機243rpm,減速機271rpm,減速機327rpm。(以上rpm數均為四級電機算出的,可用兩級電機,六級電機計算,也可以用變頻電機調速)

GFF系列減速機GFF77輸出扭矩:

減速器1500N.m,減速器1450N.m,減速器1110N.m,減速器1380N.m,減速器1430N.m,減速器1080N.m,減速器1010N.m。(以上扭矩均為四級電機得出扭矩,需要比上面更大的扭矩,可把電機功率加大,減速器型號加大)


FF77減速機電機型號:FF77DRE100L4,FF77DRE112L4,FF77DRE132L4,FF77DRE160L4,FF77DRE63L4,FF77DRE71L4,FF77DRE80L4,FF77DRE90L4,FF77DRS100L4,FF77DRS112L4,FF77DRS132L4,FF77DRS160L4,FF77DRS63L4,FF77DRS71L4,FF77DRS80L4,FF77DRS90L4,FF77DT100L4,FF77DT112L4,FF77DT132L4,FF77DT160L4,FF77DT63L4,FF77DT71L4,FF77DT80L4,FF77DT90L4,FF77DV100L4,FF77DV112L4,FF77DV132L4,FF77DV160L4,FF77DV63L4,FF77DV71L4,FF77DV80L4,FF77DV90L4,FF77Y100L4,FF77Y112L4,FF77Y132L4,FF77Y160L4,FF77Y63L4,FF77Y71L4,FF77Y80L4,FF77Y90L4,FF77DRE100M4,FF77DRE112M4,FF77DRE132M4,FF77DRE160M4,FF77DRE63M4,FF77DRE71M4,FF77DRE80M4,FF77DRE90M4,FF77DRS100M4,FF77DRS112M4,FF77DRS132M4,FF77DRS160M4,FF77DRS63M4,FF77DRS71M4,FF77DRS80M4,FF77DRS90M4,FF77DT100M4,FF77DT112M4,FF77DT132M4,FF77DT160M4,FF77DT63M4,FF77DT71M4,FF77DT80M4,FF77DT90M4,FF77DV100M4,FF77DV112M4,FF77DV132M4,FF77DV160M4,FF77DV63M4,FF77DV71M4,FF77DV80M4,FF77DV90M4,FF77Y100M4,FF77Y112M4,FF77Y132M4,FF77Y160M4,FF77Y63M4,FF77Y71M4,FF77Y80M4,FF77Y90M4,FF77DRE100S4,FF77DRE112S4,FF77DRE132S4,FF77DRE160S4,FF77DRE63S4,FF77DRE71S4,FF77DRE80S4,FF77DRE90S4,FF77DRS100S4,FF77DRS112S4,FF77DRS132S4,FF77DRS160S4,FF77DRS63S4,FF77DRS71S4,FF77DRS80S4,FF77DRS90S4,FF77DT100S4,FF77DT112S4,FF77DT132S4,FF77DT160S4,FF77DT63S4,FF77DT71S4,FF77DT80S4,FF77DT90S4,FF77DV100S4,FF77DV112S4,FF77DV132S4,FF77DV160S4,FF77DV63S4,FF77DV71S4,FF77DV80S4,FF77DV90S4,FF77Y100S4,FF77Y112S4,FF77Y132S4,FF77Y160S4,FF77Y63S4,FF77Y71S4,FF77Y80S4,FF77Y90S4齒輪減速電機

FF77減速機搭配各種電機實物圖:


FF77減速機工廠展示:看廠請聯系微信13826972124,獲取位置,需提前一天預約http://ammunjo.com/product/list-ffxiliejiansuji-cn.html


推薦類似型號:減速機FA77

關鍵詞:剎車電機減速機_制動電機減速機_減速器帶抱閘_FF系列減速機_GFF型減速馬達

FF系列齒輪減速機型號:FF27減速機,FF37減速機,FF47減速機,FF67減速機,FF77減速機,FF87減速機,FF97減速機,FF107減速機,FF127減速機,FF157減速機

FF系列電動機減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-132KW之間

如需工程師幫選型,請加微信13826972124,留言告知工程師參數要求



標簽:  減速電機FF77 FF77減速機 FF77減速器 FF77斜齒輪減速機 GFF77斜齒輪減速機

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
FF77減速機三維圖紙下載3D 點擊下載
FF系列減速機樣本 點擊下載
