FAF97減速機電機功率：FAF系列減速電機

FAF97Y1.1KW,FAF97Y1.5KW,FAF97Y2.2KW,FAF97Y3KW,FAF97Y4KW,FAF97Y5.5KW電機,FAF97Y7.5KW,FAF97Y11KW,FAF97Y15KW,FAF97Y18.5KW,FAF97Y22KW,FAF97Y30KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

FAF97齒輪減速機減速比：

減速器276比,減速器253比,減速器223比,減速器189比,減速器174比,減速器156比,減速器140比,減速器127比,減速器112比,減速器102比,減速器97比,減速器89比,減速器86比,減速器80比,減速器75比,減速器72比,減速器65比,減速器58比,減速器52比,減速器44比,減速器38比,減速器32比,減速器43比,減速器36比,減速器33比,減速器30比,減速器27比,減速器24比,減速器22比,減速器20比,減速器17比,減速器15比,減速器12比,減速器11比,減速器9比,減速器8比,減速器7比,減速器6比,減速器5比,減速器4比,減速器3比

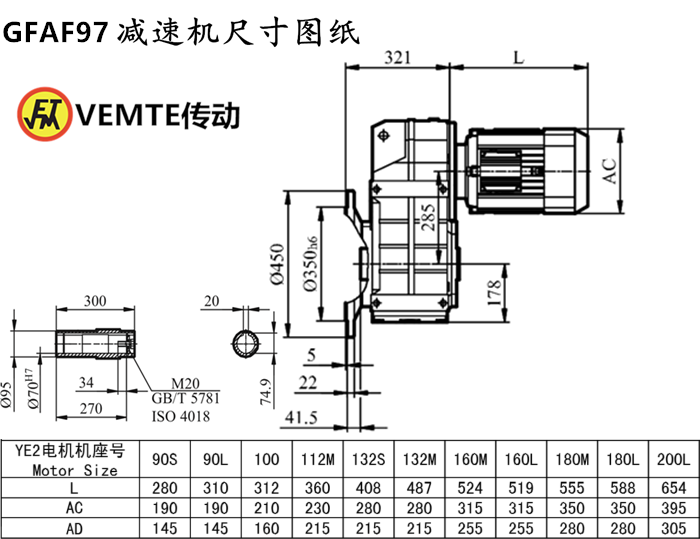

FAF97減速機安裝尺寸：輸出孔Φ74.9（可定做），高622*寬400*長321（帶法蘭）

FAF97減速機輸出轉數：

5轉減速箱,6轉減速箱,7轉減速箱,8轉減速箱,9轉減速箱,10轉減速箱,11轉減速箱,12轉減速箱,14轉減速箱,16轉減速箱,17轉減速箱,19轉減速箱,21轉減速箱,24轉減速箱,27轉減速箱,31轉減速箱,36轉減速箱,43轉減速箱,32轉減速箱,38轉減速箱,41轉減速箱,46轉減速箱,51轉減速箱,56轉減速箱,63轉減速箱,70轉減速箱,81轉減速箱,93轉減速箱,110轉減速箱,125轉減速箱,170轉減速箱,198轉減速箱,227轉減速箱,268轉減速箱,306轉減速箱,362轉減速箱。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

FAF97平行軸減速電機輸出扭矩：

4300Nm減速器,3070Nm減速器,4100Nm減速器,2360Nm減速器,2250Nm減速器,2150Nm減速器,2050Nm減速器,1800Nm減速器。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大）

FAF97減速機電機型號：FAF97DRE100M4,FAF97DRE112M4,FAF97DRE132M4,FAF97DRE160M4,FAF97DRE180M4,FAF97DRE200M4,FAF97DRE90M4,FAF97DRS100M4,FAF97DRS112M4,FAF97DRS132M4,FAF97DRS160M4,FAF97DRS180M4,FAF97DRS200M4,FAF97DRS90M4,FAF97DT100M4,FAF97DT112M4,FAF97DT132M4,FAF97DT160M4,FAF97DT180M4,FAF97DT200M4,FAF97DT90M4,FAF97DV100M4,FAF97DV112M4,FAF97DV132M4,FAF97DV160M4,FAF97DV180M4,FAF97DV200M4,FAF97DV90M4,FAF97Y100M4,FAF97Y112M4,FAF97Y132M4,FAF97Y160M4,FAF97Y180M4,FAF97Y200M4,FAF97Y90M4,FAF97DRE100L4,FAF97DRE112L4,FAF97DRE132L4,FAF97DRE160L4,FAF97DRE180L4,FAF97DRE200L4,FAF97DRE90L4,FAF97DRS100L4,FAF97DRS112L4,FAF97DRS132L4,FAF97DRS160L4,FAF97DRS180L4,FAF97DRS200L4,FAF97DRS90L4,FAF97DT100L4,FAF97DT112L4,FAF97DT132L4,FAF97DT160L4,FAF97DT180L4,FAF97DT200L4,FAF97DT90L4,FAF97DV100L4,FAF97DV112L4,FAF97DV132L4,FAF97DV160L4,FAF97DV180L4,FAF97DV200L4,FAF97DV90L4,FAF97Y100L4,FAF97Y112L4,FAF97Y132L4,FAF97Y160L4,FAF97Y180L4,FAF97Y200L4,FAF97Y90L4,FAF97DRE100S4,FAF97DRE112S4,FAF97DRE132S4,FAF97DRE160S4,FAF97DRE180S4,FAF97DRE200S4,FAF97DRE90S4,FAF97DRS100S4,FAF97DRS112S4,FAF97DRS132S4,FAF97DRS160S4,FAF97DRS180S4,FAF97DRS200S4,FAF97DRS90S4,FAF97DT100S4,FAF97DT112S4,FAF97DT132S4,FAF97DT160S4,FAF97DT180S4,FAF97DT200S4,FAF97DT90S4,FAF97DV100S4,FAF97DV112S4,FAF97DV132S4,FAF97DV160S4,FAF97DV180S4,FAF97DV200S4,FAF97DV90S4,FAF97Y100S4,FAF97Y112S4,FAF97Y132S4,FAF97Y160S4,FAF97Y180S4,FAF97Y200S4,FAF97Y90S4

FAF系列減速器FAF97配各種電機實物圖：

FAF97減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://ammunjo.com/product/list-fafxiliejiansuji-cn.html

推薦類似型號：減速機F97
