FAF27減速機電機功率：

FAF27Y0.12KW,FAF27Y0.18KW,FAF27Y0.25KW,FAF27Y0.37KW,FAF27Y0.55KW,FAF27Y0.75KW,FAF27Y1.1KW,FAF27Y1.5KW,FAF27Y2.2KW電機.（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

FAF系列減速機FAF27減速比：

減速器1:140,減速器1:129,減速器1:109,減速器1:94,減速器1:88,減速器1:77,減速器1:72,減速器1:63,減速器1:56,減速器1:50,減速器1:46,減速器1:40,減速器1:38,減速器1:33,減速器1:29,減速器1:27,減速器1:23,減速器1:20,減速器1:18,減速器1:16,減速器1:13,減速器1:12,減速器1:10,減速器1:9,減速器1:8,減速器1:6,減速器1:5,減速器1:4。

FAF27減速機安裝尺寸：輸出孔Φ28.5（可定做），高226*寬150*長118.5（帶法蘭）

FAF27減速機輸出轉數：

9轉減速器,11轉減速器,13轉減速器,15轉減速器,16轉減速器,18轉減速器,19轉減速器,22轉減速器,25轉減速器,28轉減速器,30轉減速器,34轉減速器,37轉減速器,41轉減速器,47轉減速器,52轉減速器,60轉減速器,69轉減速器,74轉減速器,86轉減速器,101轉減速器,113轉減速器,133轉減速器,142轉減速器,149轉減速器,172轉減速器,203轉減速器,227轉減速器,266轉減速器,284轉減速器,337轉減速器。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）齒輪減速機

FAF27減速機輸出扭矩：

減速器130Nm,減速器123Nm,減速器114Nm,減速器109Nm,減速器100Nm,減速器96Nm,減速器87Nm。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大）

FAF27電動機減速機型號：FAF27DRE100M4,FAF27DRE63M4,FAF27DRE71M4,FAF27DRE80M4,FAF27DRE90M4,FAF27DRS100M4,FAF27DRS63M4,FAF27DRS71M4,FAF27DRS80M4,FAF27DRS90M4,FAF27DT100M4,FAF27DT63M4,FAF27DT71M4,FAF27DT80M4,FAF27DT90M4,FAF27DV100M4,FAF27DV63M4,FAF27DV71M4,FAF27DV80M4,FAF27DV90M4,FAF27Y100M4,FAF27Y63M4,FAF27Y71M4,FAF27Y80M4,FAF27Y90M4,,FAF27DRE100L4,FAF27DRE63L4,FAF27DRE71L4,FAF27DRE80L4,FAF27DRE90L4,FAF27DRS100L4,FAF27DRS63L4,FAF27DRS71L4,FAF27DRS80L4,FAF27DRS90L4,FAF27DT100L4,FAF27DT63L4,FAF27DT71L4,FAF27DT80L4,FAF27DT90L4,FAF27DV100L4,FAF27DV63L4,FAF27DV71L4,FAF27DV80L4,FAF27DV90L4,FAF27Y100L4,FAF27Y63L4,FAF27Y71L4,FAF27Y80L4,FAF27Y90L4,,FAF27DRE100S4,FAF27DRE63S4,FAF27DRE71S4,FAF27DRE80S4,FAF27DRE90S4,FAF27DRS100S4,FAF27DRS63S4,FAF27DRS71S4,FAF27DRS80S4,FAF27DRS90S4,FAF27DT100S4,FAF27DT63S4,FAF27DT71S4,FAF27DT80S4,FAF27DT90S4,FAF27DV100S4,FAF27DV63S4,FAF27DV71S4,FAF27DV80S4,FAF27DV90S4,FAF27Y100S4,FAF27Y63S4,FAF27Y71S4,FAF27Y80S4,FAF27Y90S4。

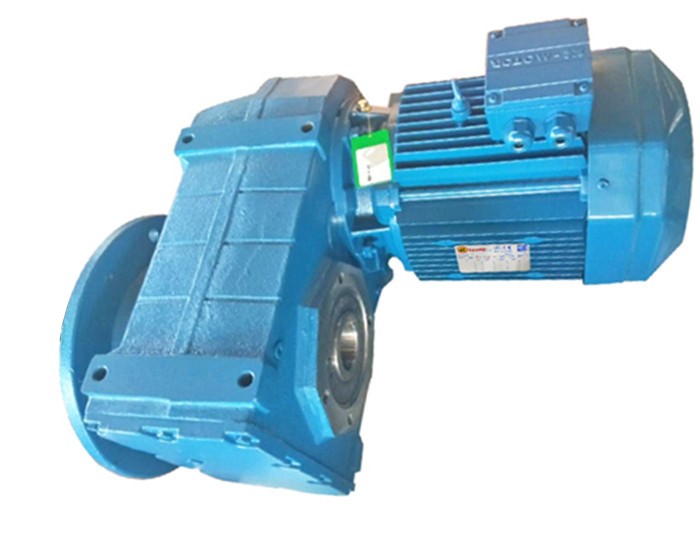

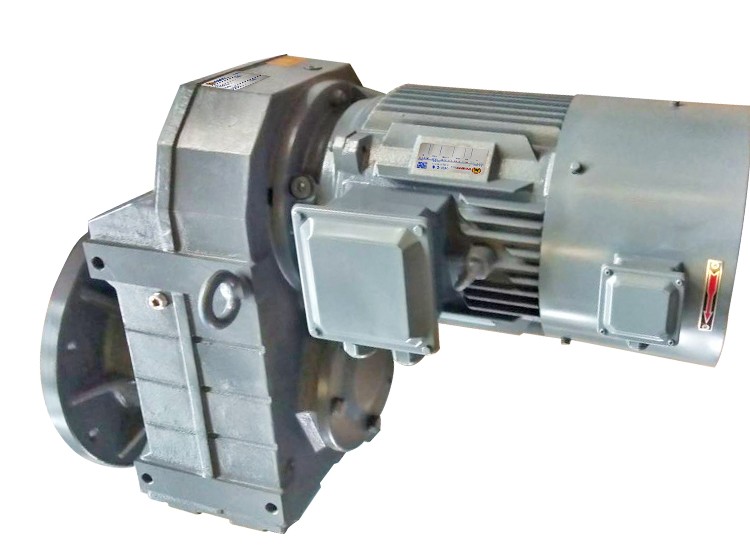

FAF27齒輪減速馬達實物圖：

FAF27減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://ammunjo.com/product/list-fafxiliejiansuji-cn.html

推薦類似型號：減速機F27
